Polycom SoundPoint IP 560 User Manual

Customizing Your Phone
2 - 5

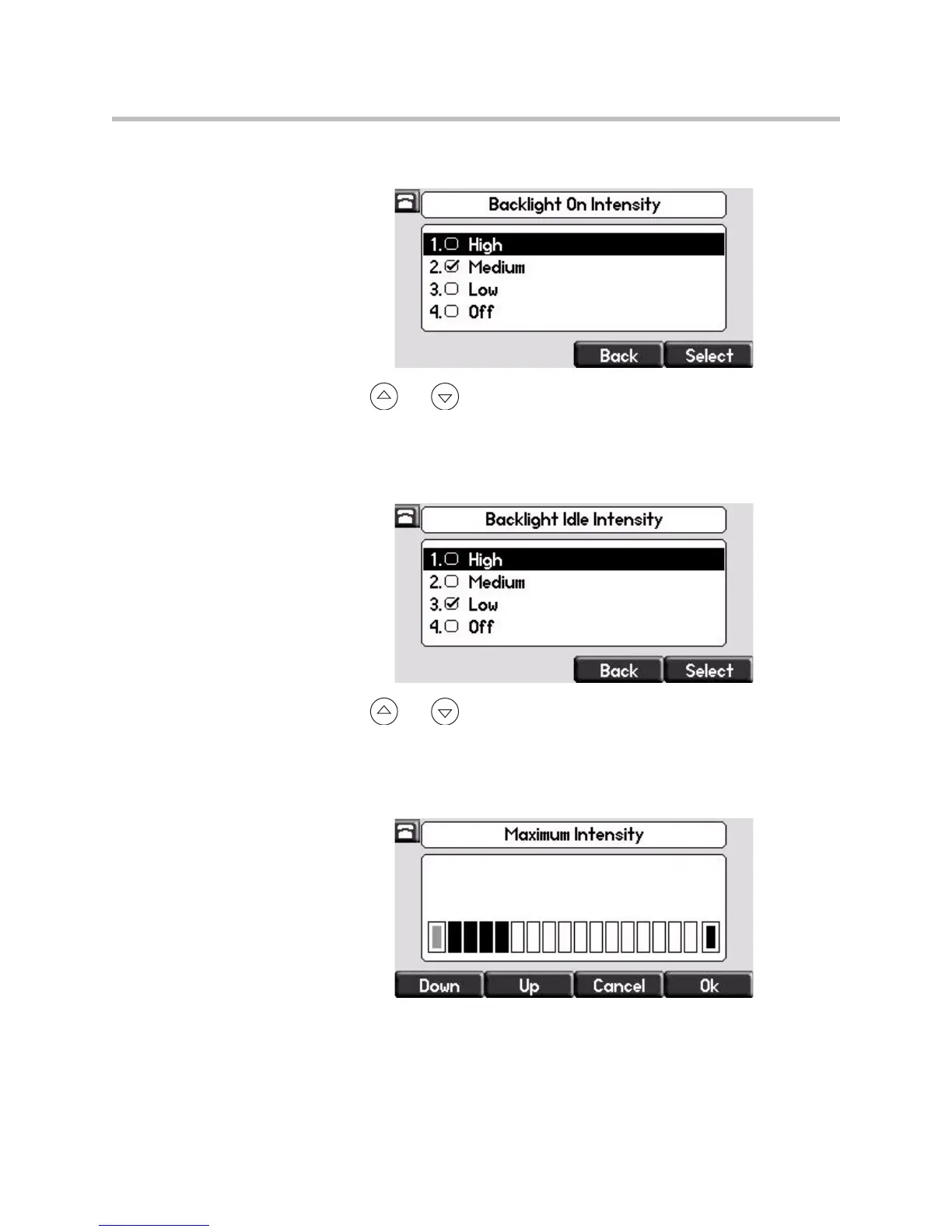

3. Select Backlight On Intensity.
4. Use or to select high, medium, low, or off, and then press the
Select soft key.
The default level is medium.
5. Select Backlight Idle Intensity.
6. Use or to select high, medium, low, or off, and then press the
Select soft key.
The default level is low.
7. Select Maximum Intensity.
8. Press the Up or Down soft keys to increase or decrease the backlight
intensity.
9. Press the Ok or Cancel soft keys to accept or cancel changes.

Polycom SoundPoint IP 560 Specifications

Display

display resolution	320 x 160 pixels
display type	backlit grayscale graphical LCD
LED backlight	custom intensity control

Power

power over ethernet	IEEE 802.3af
external power source	48V DC @ 380mA

Operating Environment

operating temperature	+10 to 40°C (+50 to 104°F)
operating relative humidity	20% to 85%, non-condensing
storage temperature	-40 to +70°C (-40 to +160°F)

Weight and Dimensions

dimensions	26.5 cm x 15 cm x 19 cm x 6.5 cm
phone weight	1.1 kg
unit box dimensions	12.5 in x 13.25 in x 3.5 in
unit box weight	1.8 kg
