Polycom SoundPoint IP 560 User Manual

User Guide for the SoundPoint IP 550/560 Phone
2 - 14

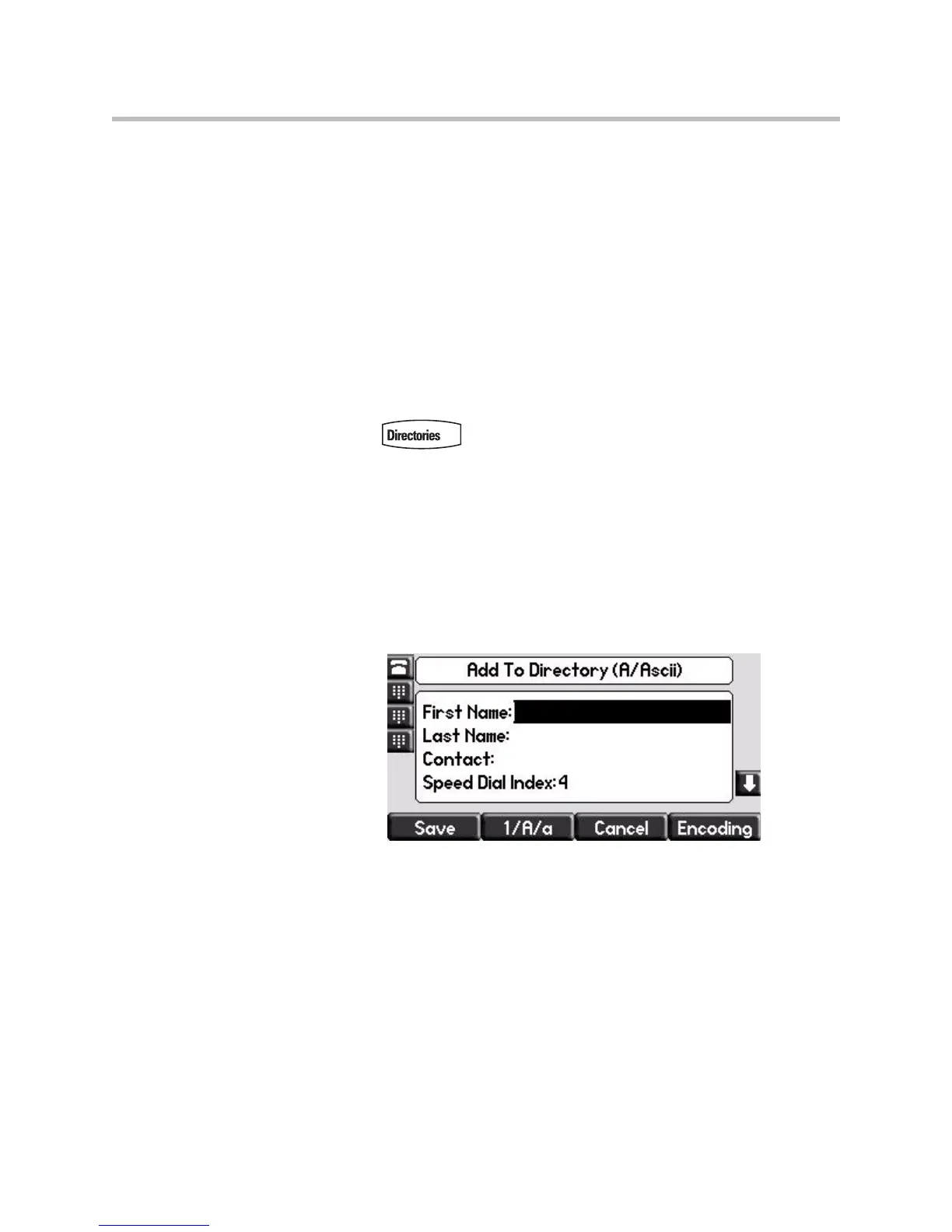

Adding Contacts
You can add contacts to your contact directory:
• Manually
• From a call list
• From your corporate directory
Adding Contacts Manually
To add a contact to the local contact directory manually:
1. Press .
2. Select Contact Directory.
3. Press the More soft key.
4. Press the Add soft key.
5. Enter first and/or last name of the contact from the keypad.
Use the 1/A/a soft key to select between numeric and upper/lower case
alphanumeric modes.
Use the Encoding soft key to access special characters in other languages.
6. Enter a contact number.
This is a required field and it must be unique (not already in the directory).

Polycom SoundPoint IP 560 Specifications

Display

display resolution	320 x 160 pixels
display type	backlit grayscale graphical LCD
LED backlight	custom intensity control

Power

power over ethernet	IEEE 802.3af
external power source	48V DC @ 380mA

Operating Environment

operating temperature	+10 to 40°C (+50 to 104°F)
operating relative humidity	20% to 85%, non-condensing
storage temperature	-40 to +70°C (-40 to +160°F)

Weight and Dimensions

dimensions	26.5 cm x 15 cm x 19 cm x 6.5 cm
phone weight	1.1 kg
unit box dimensions	12.5 in x 13.25 in x 3.5 in
unit box weight	1.8 kg
