Polycom SoundPoint IP 560 User Manual

User Guide for the SoundPoint IP 550/560 Phone
3 - 14

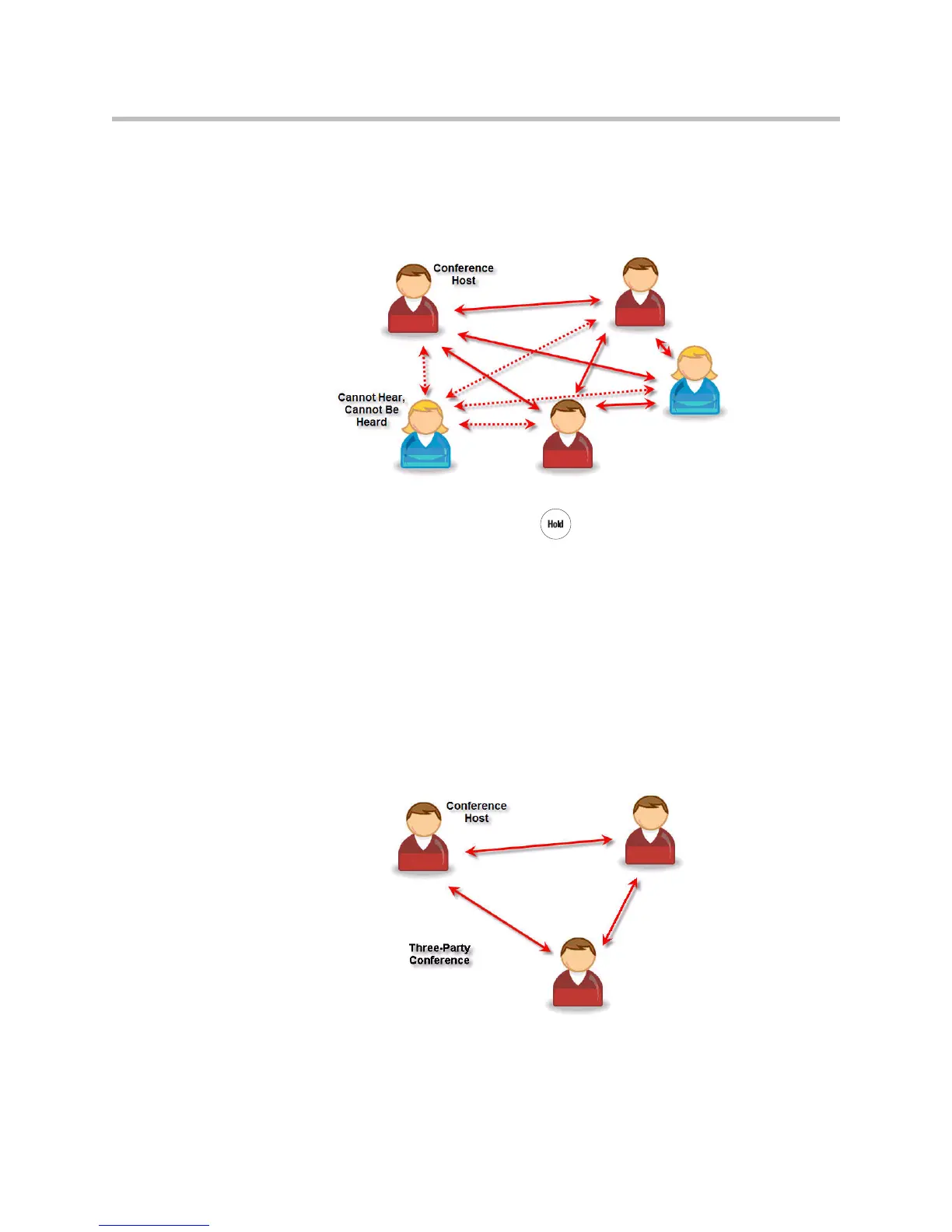

— To place a party on hold, select the party, and then press the Hold soft
key.
The held party cannot hear any parties and no party can hear the held
party.
Press the Resume soft key to return the party to the conference.
If the held party presses on their phone, the party will remain
on hold within the conference even if you press the Resume soft key.
— To remove a party from the conference, press the Remove soft key.
The party is removed from the conference. To return the party to the
conference, press the Add soft key (refer to the first optional step
above).
Adding Parties to Conference Calls
To add a party to a conference call using the Join soft key:
You are currently hosting a conference call between a number of parties.

Polycom SoundPoint IP 560 Specifications

Display

display resolution	320 x 160 pixels
display type	backlit grayscale graphical LCD
LED backlight	custom intensity control

Power

power over ethernet	IEEE 802.3af
external power source	48V DC @ 380mA

Operating Environment

operating temperature	+10 to 40°C (+50 to 104°F)
operating relative humidity	20% to 85%, non-condensing
storage temperature	-40 to +70°C (-40 to +160°F)

Weight and Dimensions

dimensions	26.5 cm x 15 cm x 19 cm x 6.5 cm
phone weight	1.1 kg
unit box dimensions	12.5 in x 13.25 in x 3.5 in
unit box weight	1.8 kg
