18 MAN. PS 254 EN – Ind. 2
2.3.6. Connection of a manual torch with
double command
! Connection of the electrode current
cable
Connect the current cable on the "-" terminal
with the quick connector, locking it by a short
rotation to the right.
! Connection of the ground cable
Connect the ground cable to the "+" terminal
surrounded by a red ring. Connection is made
with a quick connector, with right hand locking.
Connect the other end of the cable to the
workpiece, as close as possible to the joint to
be welded, in an area free from grease and
oxide.
! Connection of the command cable
The command cable of the manual torch has
to be joined to the socket FA 5 (Fig. 2.12).
! Connection of the coolant circuit
Connection is made by 2 quick push type self
sealing couplings on the front panel (symbols
and ).
! Connection of the torch shielding gas
hose
Connection is made with a quick push-type
coupling located on the connection plate of the
power source (symbol
" ).

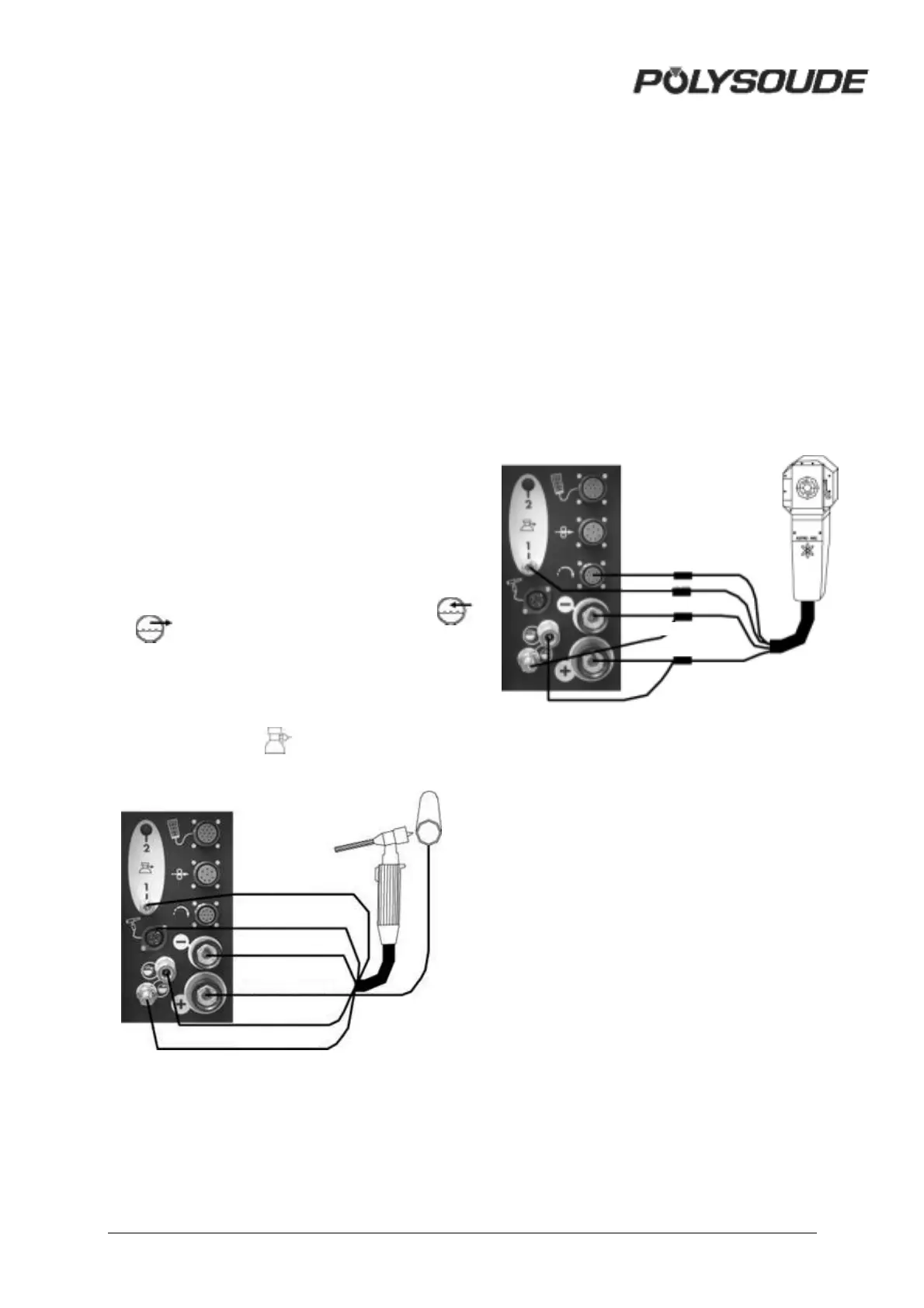

Fig. 2.10 : Connection of a manual torch
2.3.7. Connection of a liquid cooled
closed chamber welding head with
tachometry (optional)
Adapters are mounted between every circuit
from welding head and connections on power
source :
• Gas circuit.
• Torch rotation.
• Electrode connection and water return.
• Workpiece connection and water outlet.
Connections of these adapters on the power
source are identical with those of a liquid
cooled closed chamber welding head.
Fig. 2.11 : Connection of a liquid cooled
closed chamber welding head with
tachometry
Gas coupling
Torch command connection
Electrode connection
Workpiece connection
Water outlet
Water return
Torch rotation
Gas
Electrode connection
Water return
Work
p
iece connection
Water outlet
