Polysoude PS 254 - Synopsis

20 MAN. PS 254 EN – Ind. 2
2.4.2. Synopsis
SY 1 Indicator "Printer mode".
SY 2 Indicator "Print report when weld cycle
is finished".
SY 3 Indicator "Current mode".
SY 4 Indicator "With pulsed current".
SY 5 Indicator "Forward rotation".
SY 6 Indicator "Rotation mode".
SY 7 Indicator "Pulsed rotation speed".
SY 8 Indicator "With wire ".
SY 9 Indicator "Wire pushing mode".
SY 10 Indicator "Pulsed wire speed".
SY 11 Print a program key and indicator
"Printing in process".
SY 12 Loading a program from the memo
card key and indicator "Loading in
process".
SY 13 Saving a program on the memo card
key and indicator "Saving in process".
SY 14 Key to program sector positioning or
for entering the date, time and name of
your company.
SY 15 Key to choose built-in programs from
the machine memory.
SY 16 Keys for moving inside the synoptic.
SY 17 Keys for moving inside the synoptic.
SY 18 Keys for moving inside the synoptic.
SY 19 Keys for moving inside the synoptic.
SY 20 Key for increasing parameter values.
SY 21 Key for decreasing parameter values.
SY 22 Enter key.
SY 23 Key for deleting programs or sectors
(trash can).
SY 24 Screen
SY 25 Key operated switch "Modification
permitted or not".
SY 26 Port for memo card.
SY 27 Printer.
SY 28 Paper advance / reprint weld cycle
report.

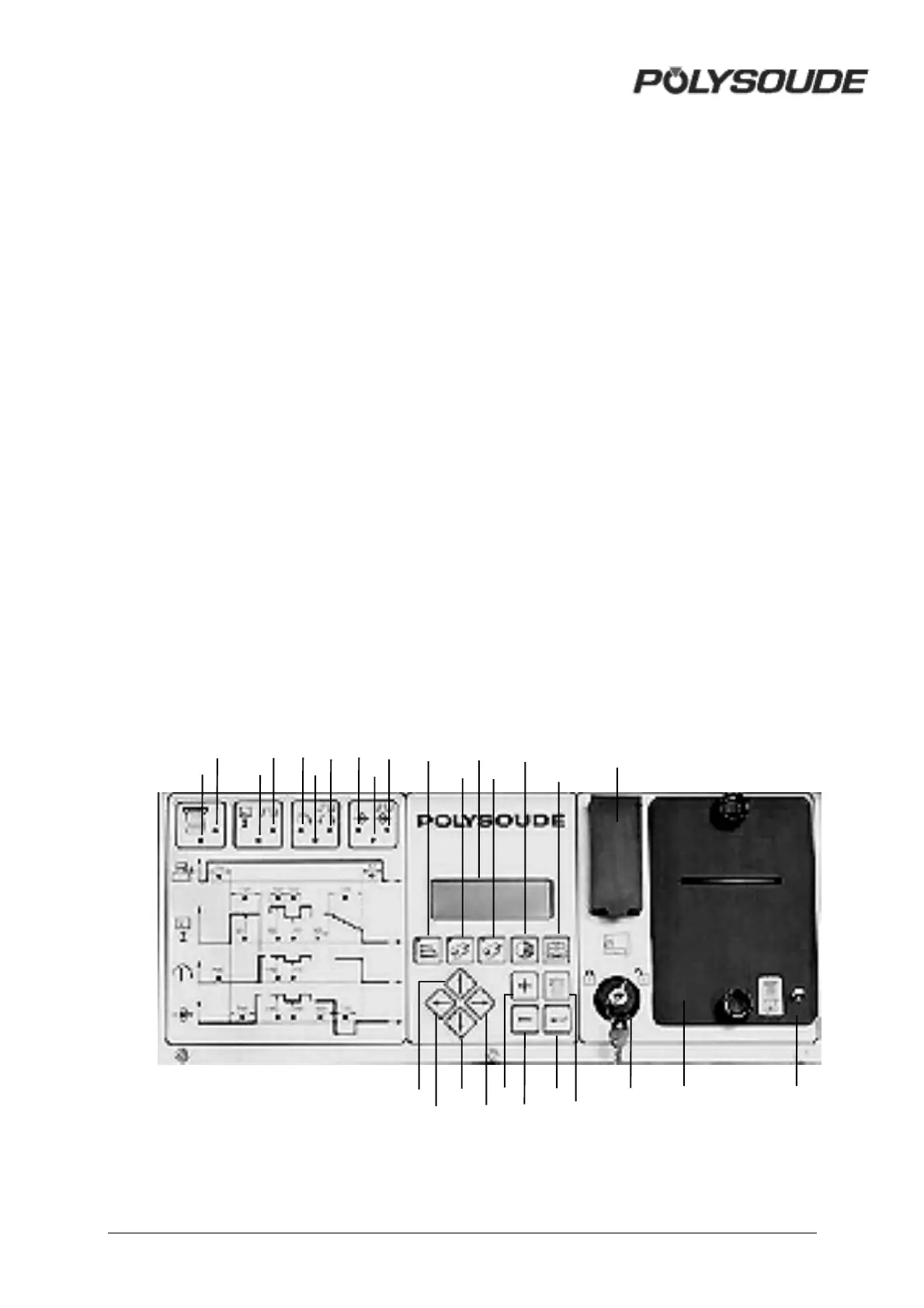

Fig. 2.14 : Synopsis
SY 28
SY 1
SY 2
SY 3
SY 4
SY 5
SY 6
SY 7
SY 8
SY 9
SY 10
SY 12
SY 11
SY 24
SY 13
SY 14
SY 15
SY 26
SY 27
SY 25
SY 23
SY 22
SY 21
SY 20
SY 19
SY 18
SY 17
SY 16
