2.4.3. The remote control pendant
BT 1 Selection switch - "Set up / weld".
BT 2 Emergency stop button.
BT 3 Indicator
Illuminated : Cycle in process.
Flashing : Fault detected.
BT 4 Switch for selecting the number of a
user program.
BT 5 Push button "Start cycle".
BT 6 Push button "Stop cycle with
downslope".
BT 7 Push button "Stop cycle immediately".
BT 8 Push button "Increase current (+)".
BT 9 Push button "Decrease current (-)".
BT 10 Push button with two functions:
Out of weld cycle: Forward rotation.
During weld cycle: Increase rotation
speed.
BT 11 Push button with two functions:
Out of weld cycle: Backward rotation.
During weld cycle: Decrease rotation
speed.
BT 12 Wire start "Automatic / Manual".
BT 13 Push button with two functions:
Out of weld cycle: Wire forward.
During weld cycle: Increase wire
speed..
BT 14 Push button with two functions:
Out of weld cycle: Wire reverse.
During weld cycle: Decrease wire
speed.
BT 15 Push button to start the cooling pump
"Test cooling circuit".
BT 16 Push button "Gas test".

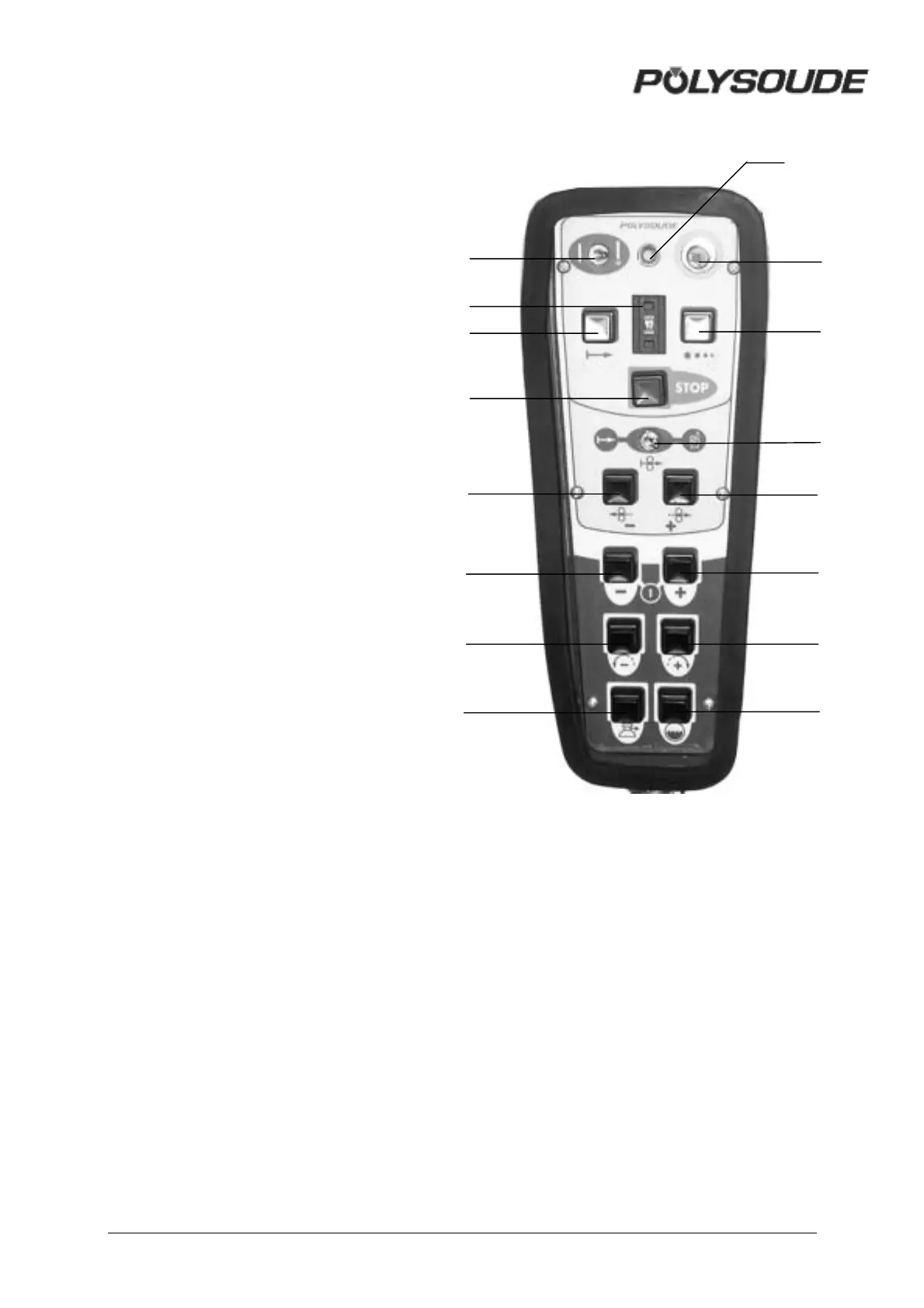

Fig. 2.15 : The remote control pendant
BT 3
BT 2
BT 6
BT 13
BT 8
BT 10
BT 15
BT 1
BT 4
BT 5
BT 7
BT 14
BT 9
BT 11
BT 16
BT 12
