Polysoude PS 254 - Page 57

56 MAN. PS 254 EN – Ind. 2

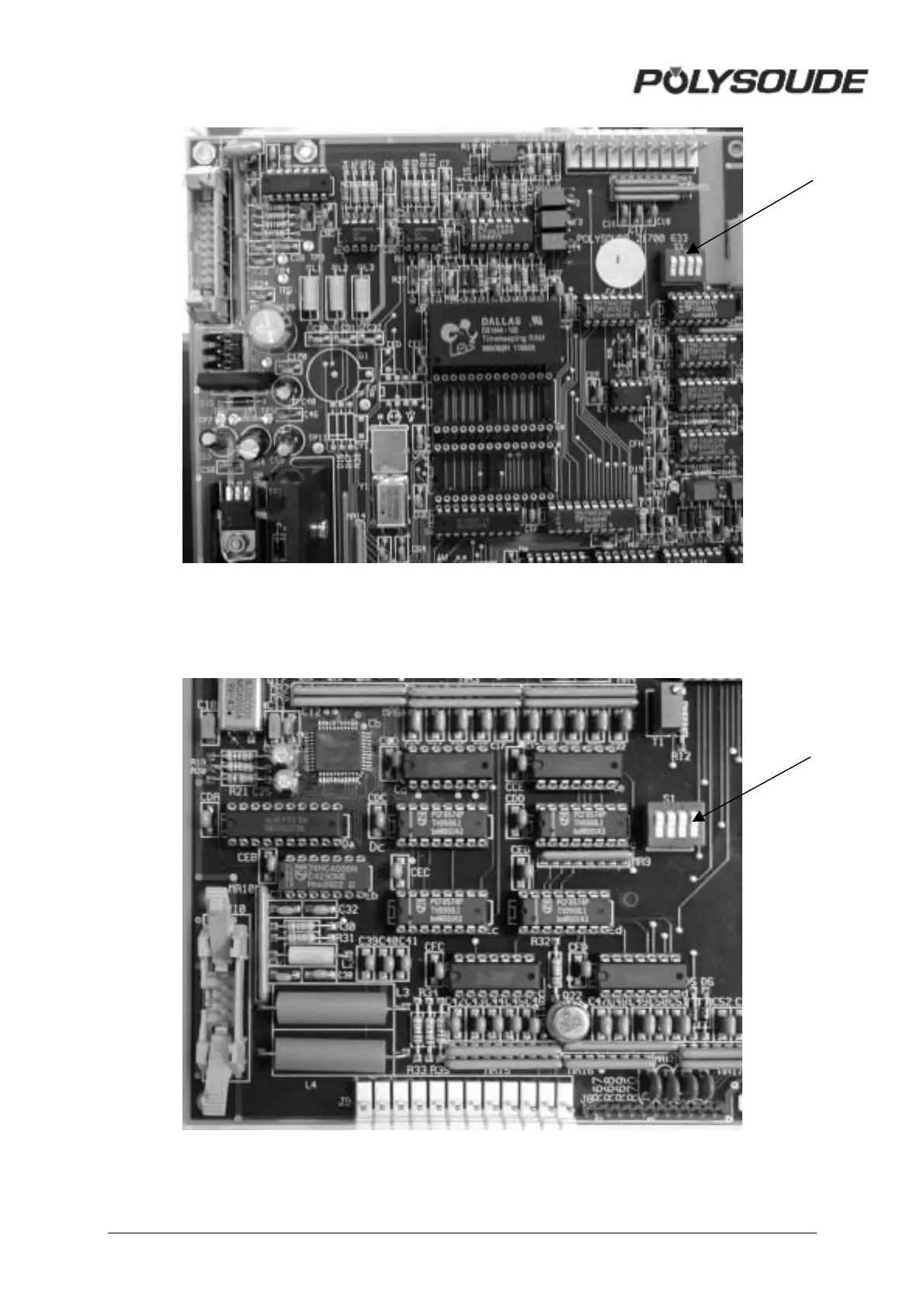

F ig. 4.1 : Inverter switch S3/2 for shunt circuit security system of monitoring welding current
in « CLOSED » position for adjustments (sequencer card)
Fig 4.2 : Inverter switch S1/4 in « CLOSED » position (21700634 synoptic card)
S32
S14
