3-11
3 First Steps
Generator board
The connections of the Spectrum M4i.6630-x8 generator board are shown in
the following figure.

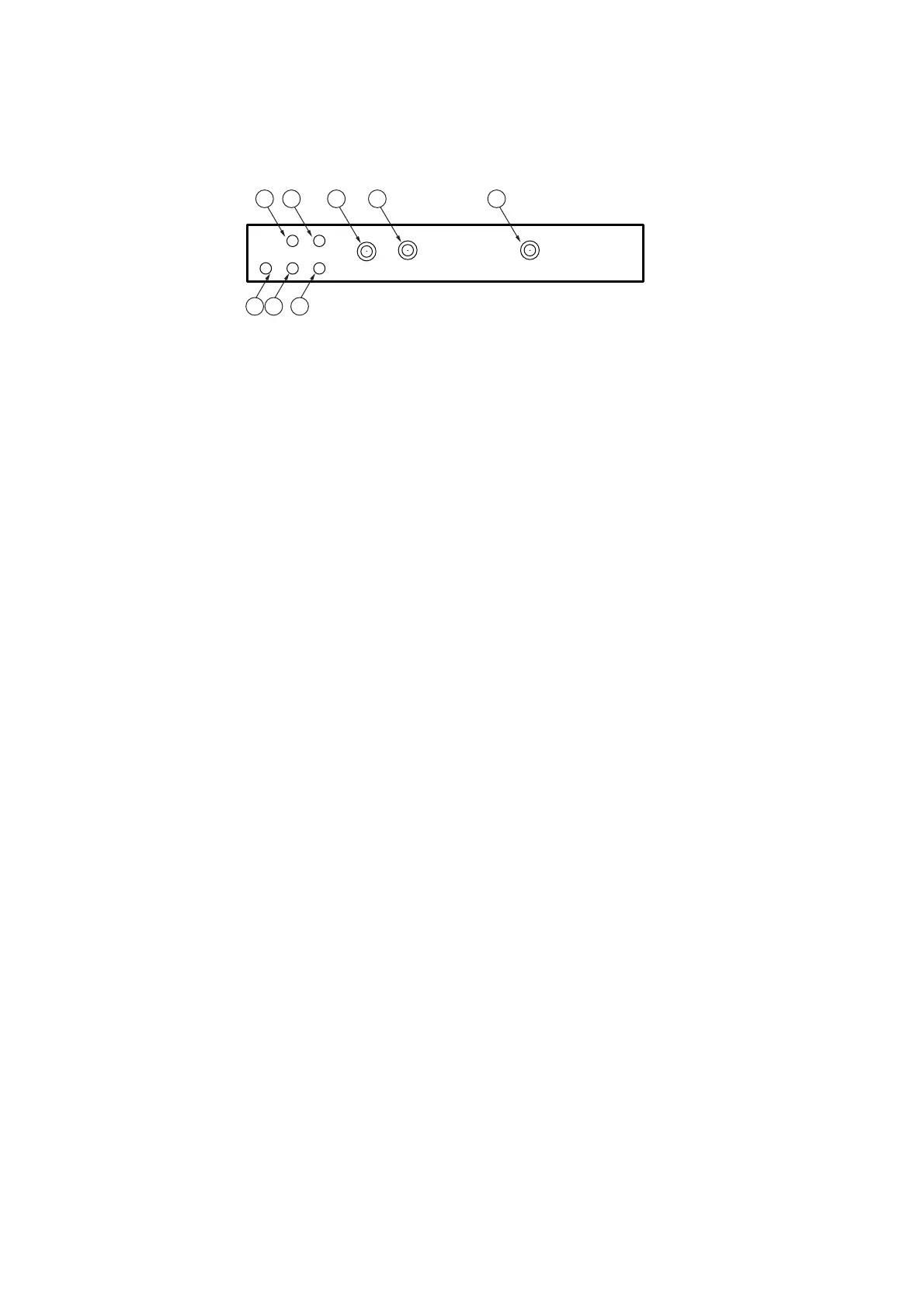

Figure 3.8: View of the generator board
1Trg1
signal input (MMCX jack)
2Clk
clock output (MMCX jack)
3Trg0
trigger input (SMA jack)
4ClkIn
clock input (SMA jack)
5Ch0
signal output (SMA jack)
6X0
signal connection (MMCX jack)
7X1
signal connection (MMCX jack)
8X2
signal connection (MMCX jack)
;
;
;
