3-16
3 First Steps
3.3.4 Holder for Objective Positioner (with MSA-A-TMS Option)
The scope of supply with option MSA-A-TMS includes a holder for the
objective positioner. Use this holder when the objective positioner is not in
use.
Assembly
Use the enclosed knurled screws and mount the holder as shown in the
following figure.

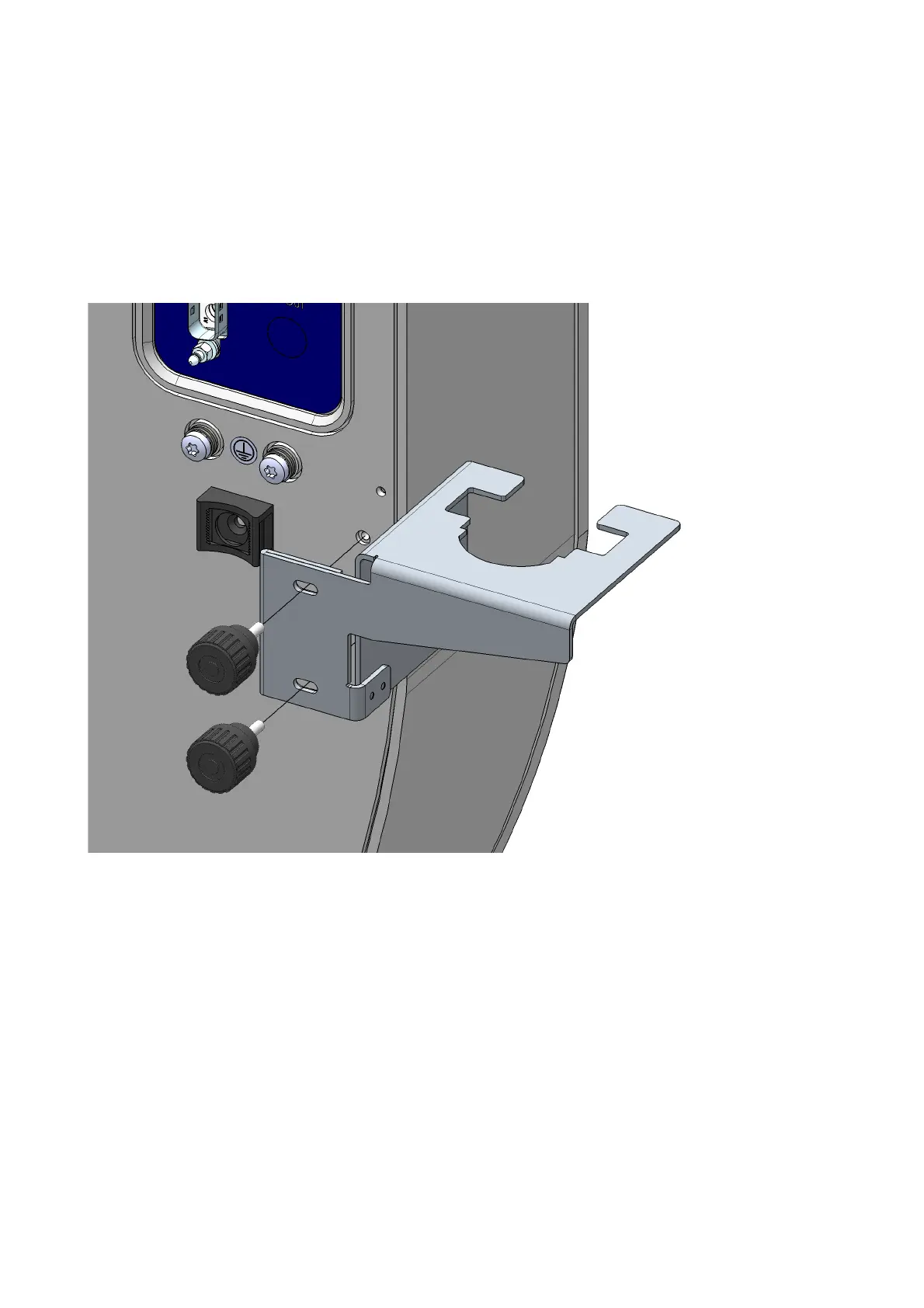

Figure 3.13: Assembly of the holder
