Series - Installation, Operation and Maintenance
Technical Summary

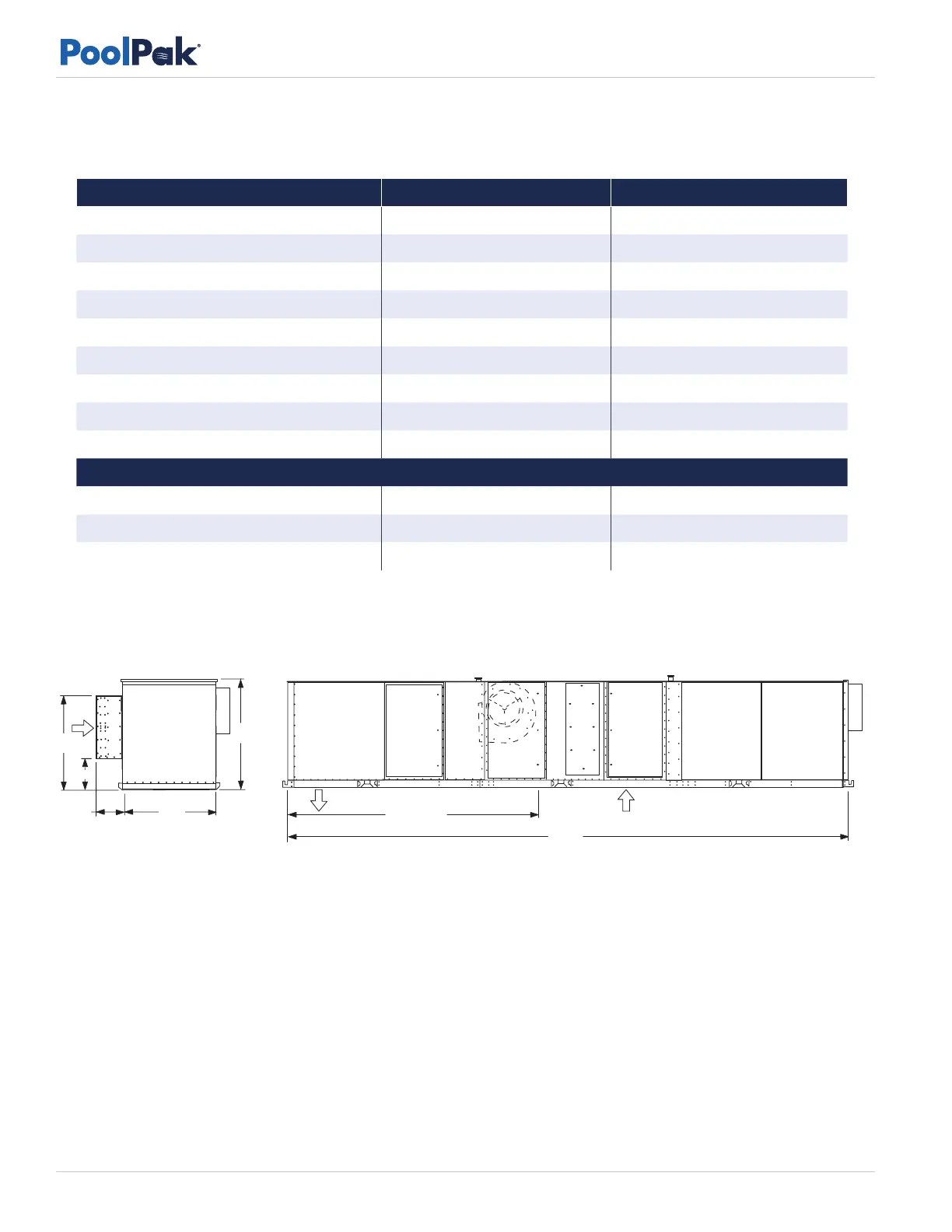

Table 2-1. RoofComPak® Technical Data
Dimensional Data
Figure 2-2. PCP RoofComPak® Dimensions
RoofComPak
®
Weights
AWH/HCDH 3500/4000 with integral gas or electric heat, remote ACC 2900 lbs
AWH/HCDH 3500/4000 with integral gas or electric heat, integral ACC 3700 lbs
AWH/HCDH 3500/4000 with no integral auxiliary heat, integral ACC 2700 lbs
MODEL NUMBER AWH / HCDH 3500 - 10 TON AWH / HCDH 4000 - 12 TON
Pool Size (Sq. Ft.) 1,200 - 2,000 1,400 - 2,500
Reheat Capacity (MBH) 170 200
Moisture Removal (Lb/Hr@82°F/60%RH) 63 70
Pool Water Flow (GPM) 26 28
Pool Water Condenser PD (FT WC)* 20 30
Pool Water Condenser Capacity (MBH) 170 200
Outside Air (CFM)(Nominal) 0 - 2,800 0 - 2,800
Total Supply Airflow CFM (Maximum) 3,500 - 8,000 4,000 - 8,000
Refrigerant Charge (lbs) 81 83
Dimensions (in inches) with integral air-cooled condenser and gas furnace
Length 264 264
Width 57.4 57.5
Height 52.5 52.2
OA
45.3
15.2
13.4
44.0
FRONT VIEW
52.5
SA
120.0 C.G.
* Side return air available; horizontal return air available without integral air-cooled condenser
LEFT VIEW
RA*
264.0
