PoolPak ComPak HCD 3500 - Figure 4-13. Remote ACC Installation Around Walls or Obstructions; Figure 4-14. Remote ACC Installation When Installing Multiple Units; Figure 4-15. Remote ACC Installation When Installing Units in Pits

© 2017 PoolPak LLC. All rights reserved. ComPak
®
Series - Installation, Operation and Maintenance | 43
ComPak
®
Series IOM

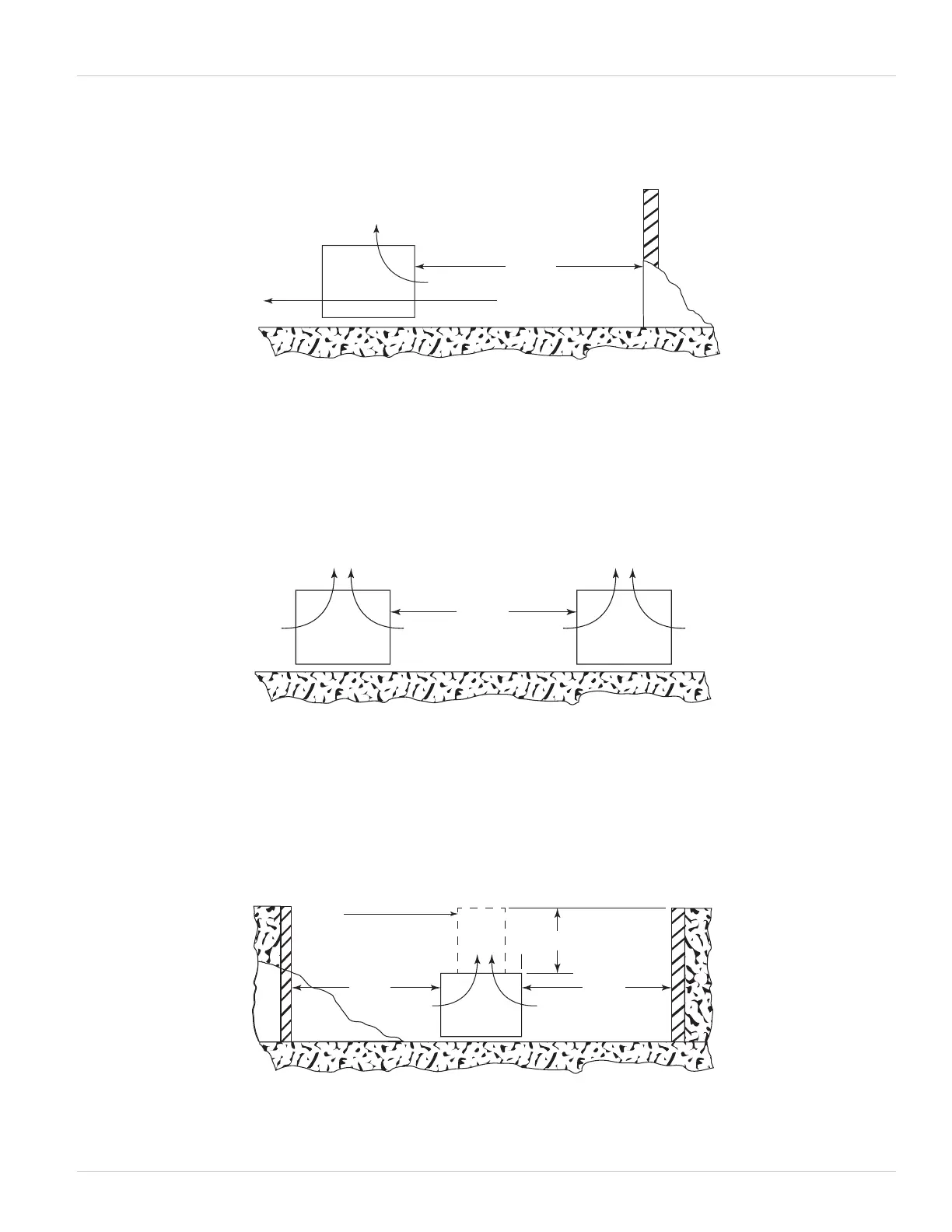

Figure 4-13. Remote ACC Installation Around Walls or Obstructions
MIN.
W*
AIR FLOW
* W”=Total width of the condenser
MULTIPLE UNITS
For units placed side by side, the minimum distance between units is the width of the largest unit. If units are
placed end to end, the minimum distance between the units is 4 feet.
Figure 4-14. Remote ACC Installation When Installing Multiple Units
UNITS IN PITS
The top of the unit should be level with the top of the pit and side distances increased to “2W”. If the top of the
units is not level with the top of the pit, discharge cones or stacks must be used to raise discharge air to the top of
the pit. This is a minimum requirement.
Figure 4-15. Remote ACC Installation When Installing Units in Pits
MIN.
* W”=Total width of the condenser
”
W*
AIR FLOW
AIR FLOW
* W”=Total width of the condenser ”
MIN.
MIN.
AIR
FLOW
2W*
2W*
STACK
(BY OTHERS
IF SUPPLIED)
10’ MAX.
