PoolPak ComPak HCD 3500 - Vertical Unit Dimensions

www.poolpak.com | 800-959-772522 | ComPak
®
Series - Installation, Operation and Maintenance
ComPak® Vertical Dimensions

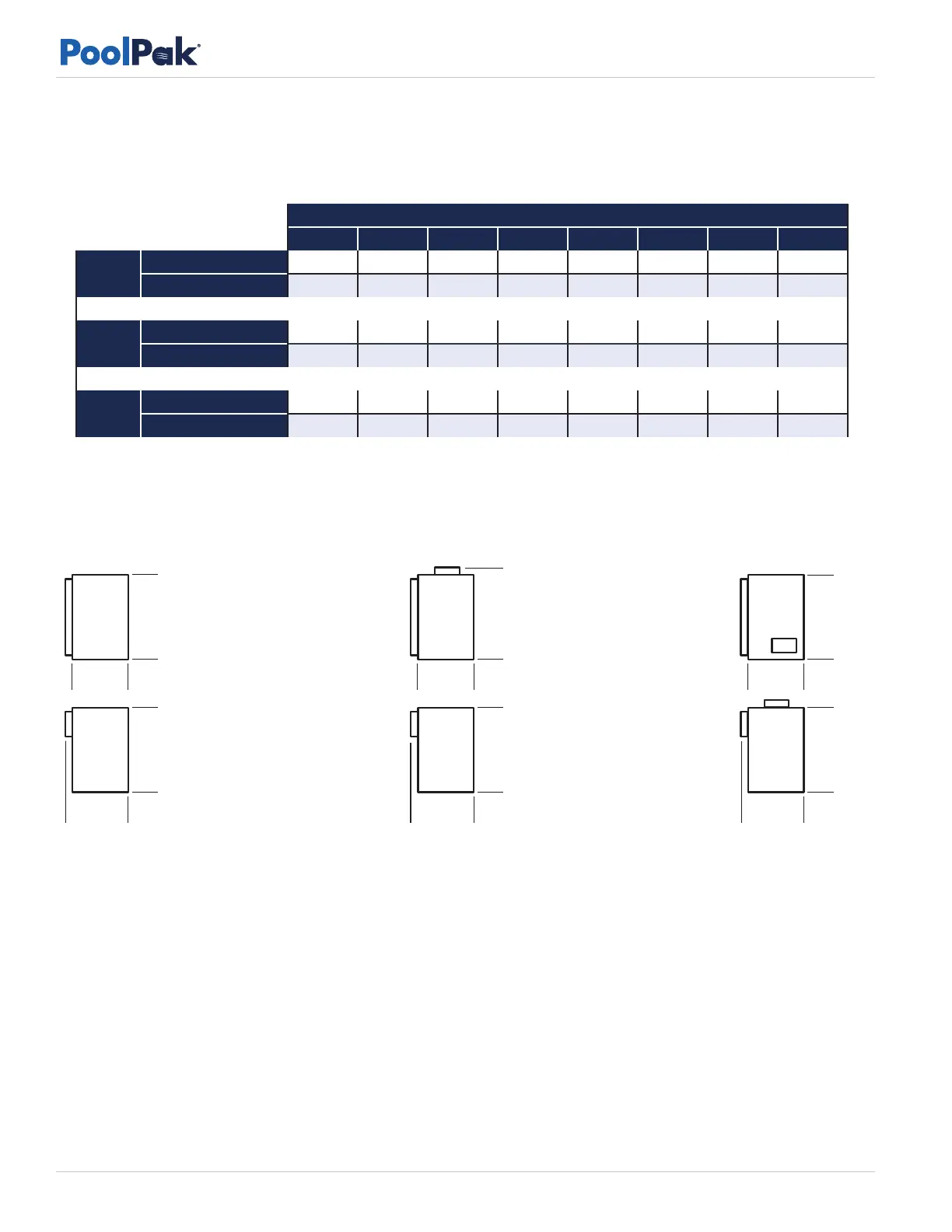

Table 3-4. AW/HCD Vertical Unit Overall Dimensions
Figure 3-2. AW/HCD Vertical Unit Elevation and Plan Views
No OA
RA Rear
L
W
Lr
H
OA Side
RA Rear
L
Wo
Lr
H
OA Top
RA Rear
L
W
Lr
Ho
MODEL NUMBER
550 800 1200 1400 1800 2600 3500 4000
WIDTH
BASIC (W) 32.1 32.1 32.1 38.8 38.8 49.6 68.2 68.2
SIDE OA (Wo) 39.0 39.0 39.0 45.7 45.7 56.5 75.0 75.0
HEIGHT
BASIC (H) 49.3 49.3 49.3 55.9 55.9 60.5 60.5 60.5
TOP OA (Ho) 56.3 56.3 56.3 62.9 62.9 67.5 67.5 67.5
LENGTH
BASIC (L) 26.2 26.2 26.2 27.8 27.8 41.4 41.4 41.4
REAR RETURN (Lr) 32.2 32.2 32.2 33.8 33.8 47.3 47.3 47.3
