www.poolpak.com | 800-959-772532 | ComPak
®
Series - Installation, Operation and Maintenance
Curb Mounting
For curbs by PoolPak, see the specific curb drawing that is specifically designed for the ComPak (Fig. 4-4)
or for the RoofComPak (Fig. 4.3). For curbs by others, you must use the same dimensions as shown.
The outside dimensions of the curb are such that the base of ComPak® extends over the edge of the curb all
the way around. This aids in preventing rainwater from getting between the base of the ComPak® and the curb.
PP It is the installing contractor’s responsibility to complete the following:
• Flash the curb into the roof
• Connect the supply and return duct to the curb’s duct support rails.
• Connect condensate drain line with appropriate trap
• Seal the curb to the bottom of the ComPak® using the gasket supplied with the curb
• Install counter-flashing provided with the curb separately between the curb and the ComPak unit.
• Seal any piping connections where piping is going through the curb
If specified when ordering, all water piping connections can be made through the curb. These water connections
may include: pool water, condensate, auxiliary hot water coil (optional).
For outdoor units with top duct connections, contractor is responsible for sealing these connections.

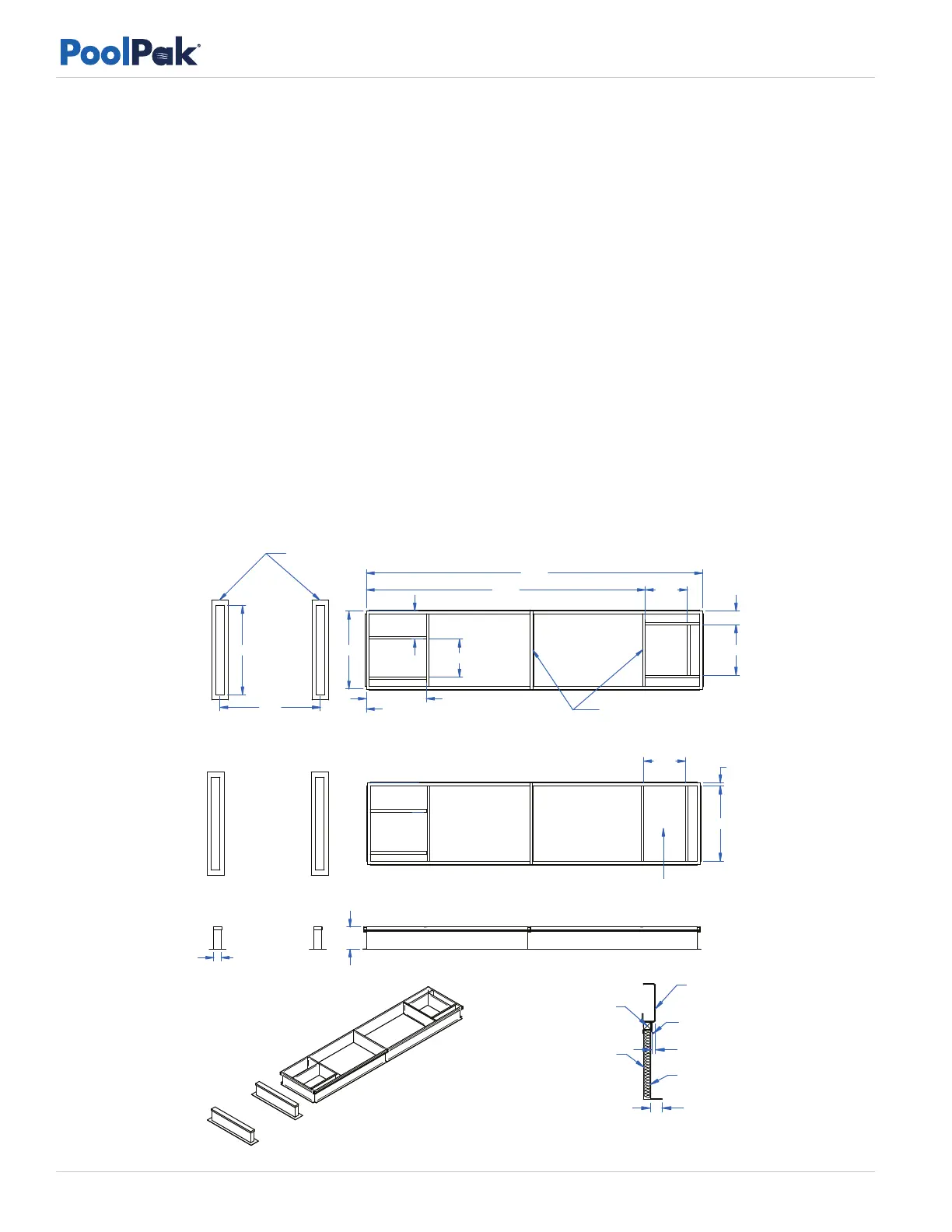

Figure 4-3. RoofComPak® Curb Assembly
ISOMETRIC VIEW
2.375
INSULATION
1-1/2" RIGID
WOOD
NAILER
UNIT
PERIMETER
RAIL
COUNTER
FLASHING
CURB
16 GA. GALV
.750
182.6
151.5 22.9
15.4
20.5
7.6
27.3
12.0
DUCT RAILS
TO BE FLUSH
WITH TOP OF
CURB
32.6
25.0
54.5
EQUIPMENT RAILS FOR
INTEGRAL ACC SUPPORT
48.5
4.0
42.2
RA
SA
23.1
39.5
1.5
RA
SA
ELEVATION VIEW
PLAN VIEW
FOR UNIT WITH 400MBH FURNACE
PLAN VIEW
FOR UNIT WITH ELEC HT OR 300MBH FURNACE
SA OPENING ONLY
DIFFERENT DIMS
SECTION OF CURB
