power automation PA 8000 EL User Manual

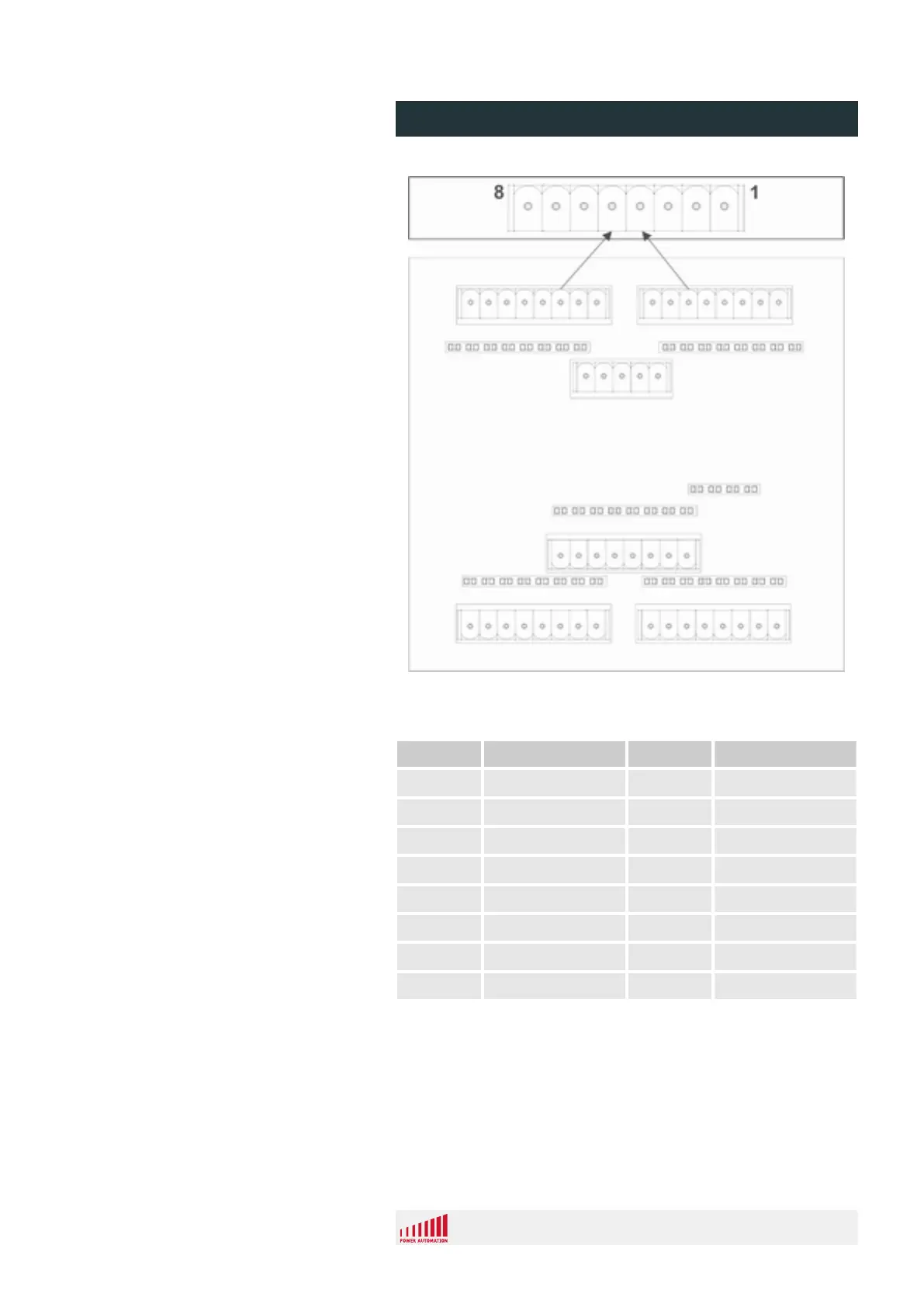

Fig. 16: Pin assignment
Byte 1 +24 V output Byte 2 +24 V output
pin 1 1. output bit pin 1 9. output bit
pin 2 2. output bit pin 2 10. output bit
pin 3 3. output bit pin 3 11. output bit
pin 4 4. output bit pin 4 12. output bit
pin 5 5. output bit pin 5 13. output bit
pin 6 6. output bit pin 6 14. output bit
pin 7 7. output bit pin 7 15. output bit
pin 8 8. output bit pin 8 16. output bit
Pin Assignment
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 39
