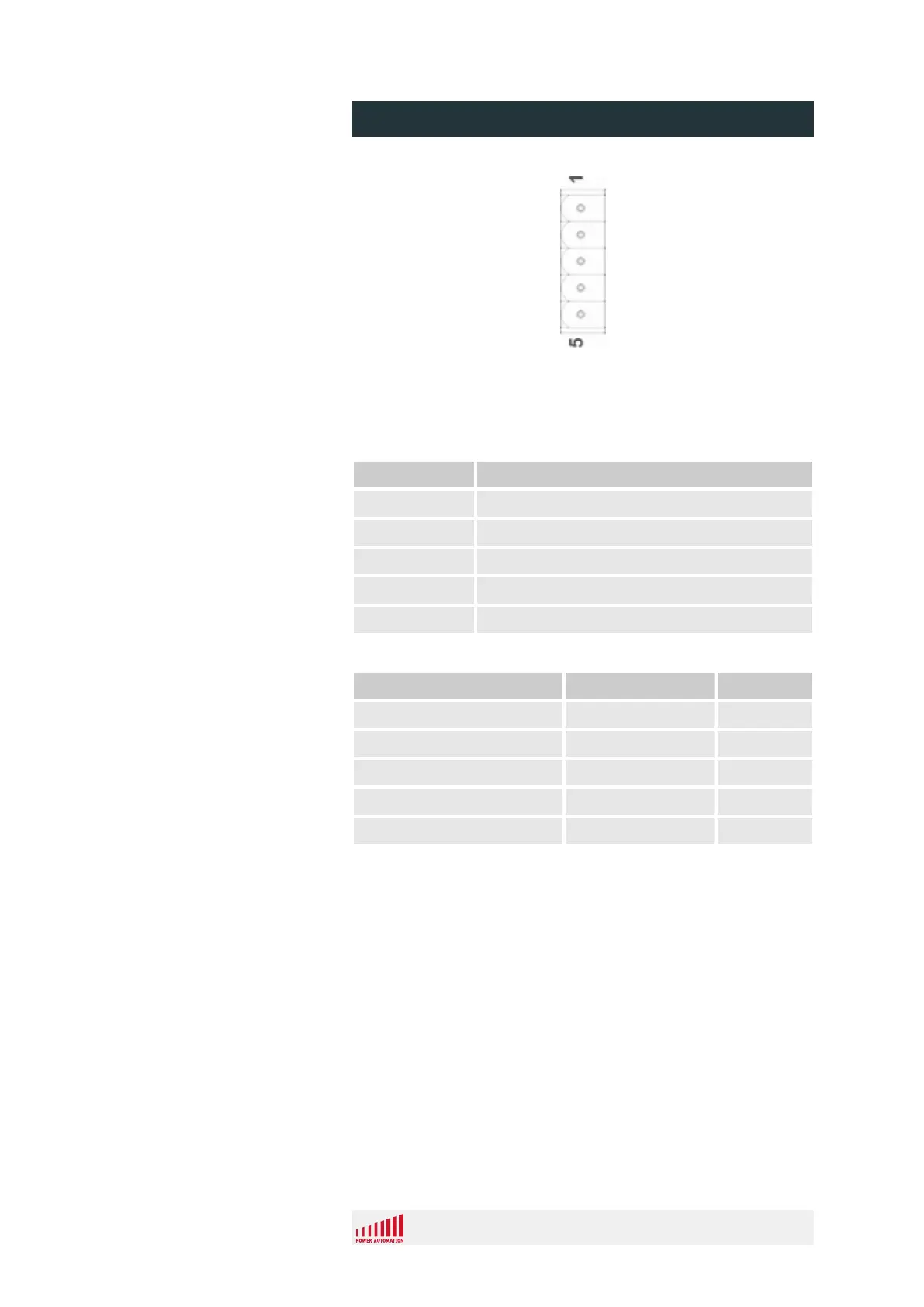

Fig. 20: Power supply pins
Each module has a 5 pin connector (X30) with the following pin
assignment:
Pin (Fig. 20) Assignment
Pin 1 + 24 V power supply for output byte 1
Pin 2 + 24 V power supply for output byte 1
Pin 3 0 V
Pin 4 + 24 V power supply for output byte 2
Pin 5 + 24 V power supply for output byte 2
Property Value Unit
Operating voltage +24 V DC
Tolerance -15.0/+12.5 %
Effective range 10.4 - 27.0 V
Current limitation 0.7 - 2.5 A
Reference Pin 3 (0 V)
Pin Assignment
Technical Data
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 44
