Pin
(Fig. 27)
Assignment
C1 RED
C2 GREEN
C3 BLUE
C4 SYNC
C5 GND
The USB ports allow connection of USB peripherals. The control
unit includes 3 standard USB 2.0 type A ports.

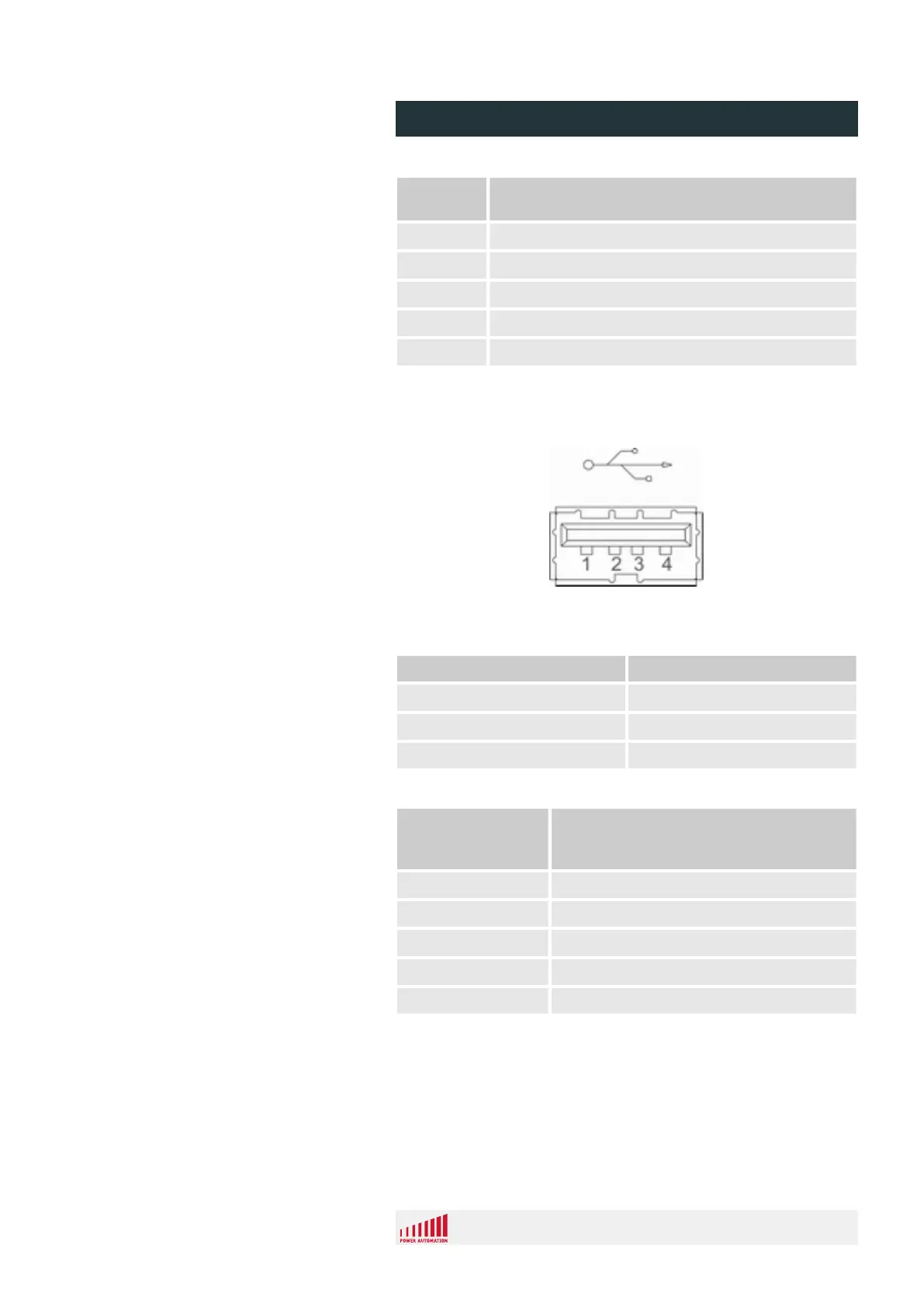

Fig. 28: USB connectors (Type A)
Property Value
Pins 4
Connector type USB 2.0 Type A
Max length 5 m (16.5 ft)
Pin ( Ä “USB 2.0
Connectors (4)”
on page 53)
USB assignment
1 VBUS
2 D-
3 D+
4 GND
Shell Shield
USB 2.0 Connectors (4)
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 53
