• Opening the transmitter
As standard the CORE is supplied in the correct mode, as specified by the customer, but some users may find that the centring
spring tension or the ratchet function needs to be adjusted to meet their personal preferences. The first step is to remove the
handrests. Lay the CORE on a soft surface – ideally a thick layer of foam. Now undo and remove all ten socket-head screws
holding the back cover. Don’t remove the back cover yet, as the cables for the switches and proportional controls in the cover
must first be disconnected.
This is the procedure: raise one side of the back cover slightly, and loosen the connectors by moving them to left and right
whilst pulling gently, then repeat the process on the other side. The back cover is now free, and can be lifted off. You will see

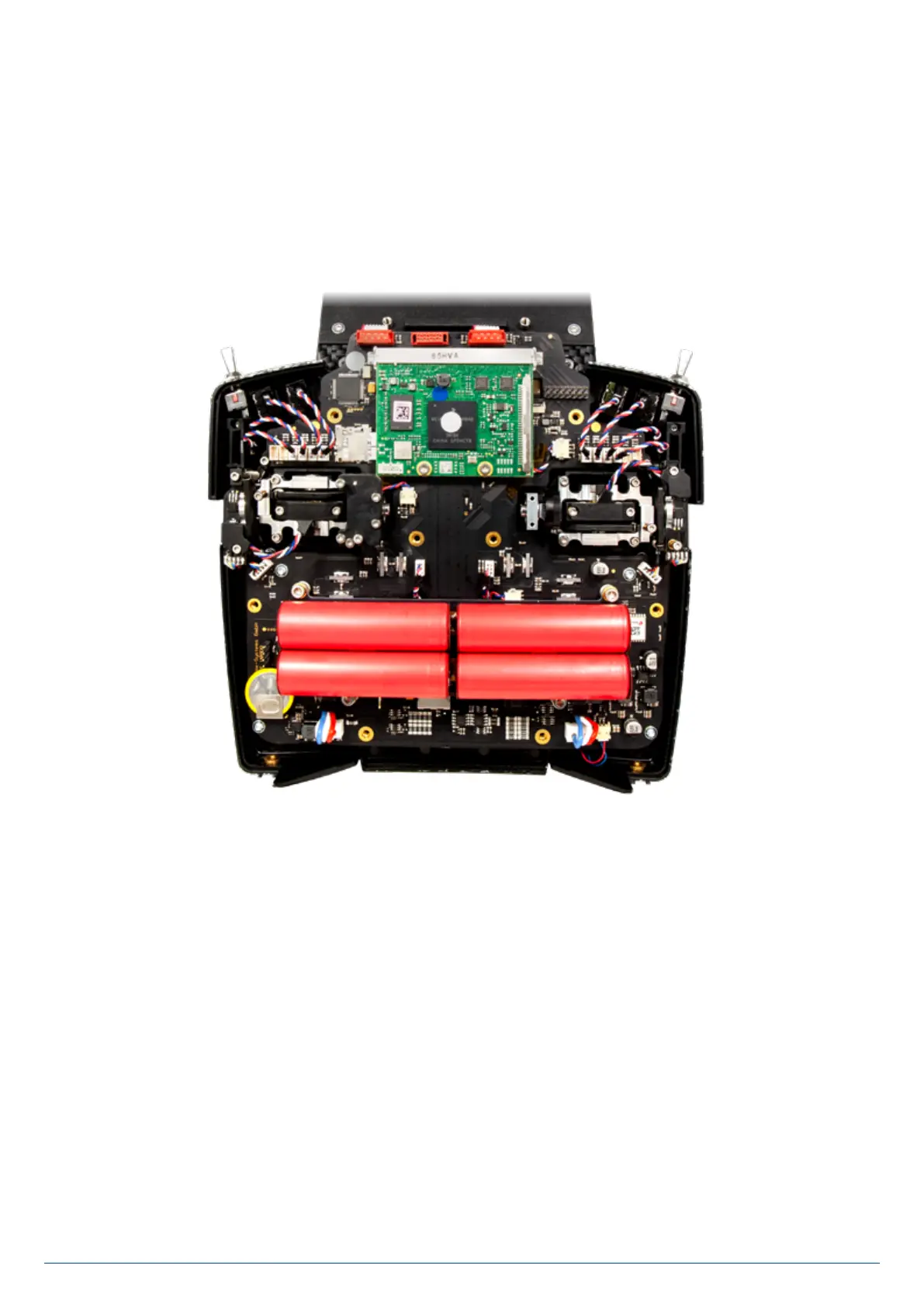

the transmitter’s internal features:.
