• Adjusting the tension of the primary stick centering springs

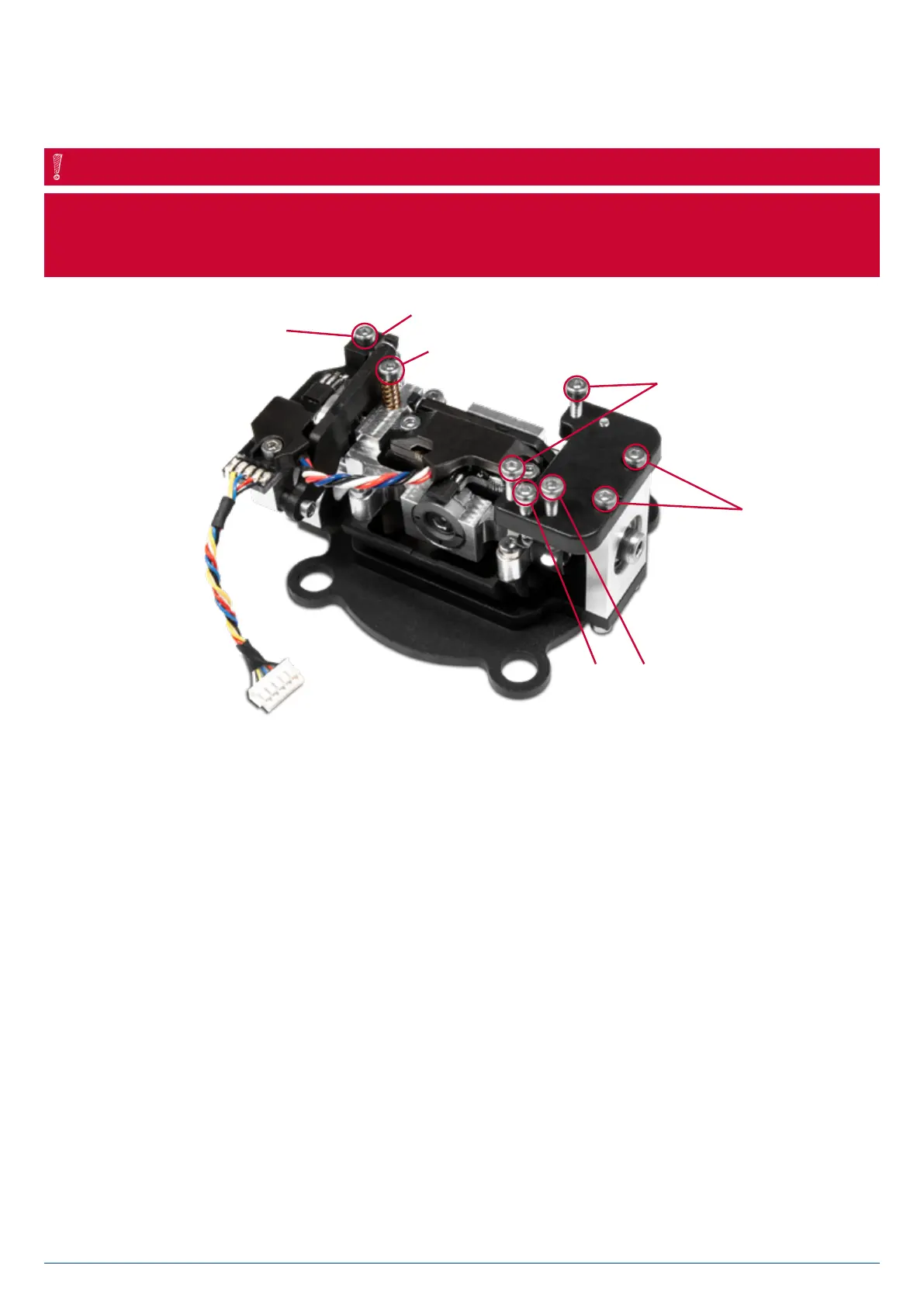

On the screws 1 and 2, the centering spring tension can be adjusted for the respective axis. Tightening the screw further
increases the spring tension. If you find it impossible to set your preferred spring tension, we can supply a range of stronger
springs.
If you tighten the screw too far, you may find that the lower spring tensioner partially moves out of its guide. You can correct
this by moving the stick fully to one side, at the same time pressing the spring tensioner back into its guide using a small
screwdriver.
NOTE
• Adjusting the throttle ratchet and brake
The hardness of the throttle ratchet can be adjusted using screw 3. Screw 4 adjusts the friction brake.
• Adjusting the throttle travel
The travel of the throttle stick on the CORE is adjustable. This is useful for 3D pilots in particular, as it enables them to set a me-
chanical limit on throttle travel. Adjustment is carried out by tightening screws 5. The throttle travel can also be set up asymme-
trically. Once you have set the travel of the throttle stick to meet your requirements, it is essential to re-calibrate that function.
• Switching modes
As already mentioned, the software has no modes, but naturally the hardware must correspond to your preferred mode. If you
wish to change the factory default mode, first undo screws 6 from the ratchet plate, then install the ratchet plate on the other
primary stick unit, as an exact mirror-image of the original installation. Tighten the retaining screws, pressing the plate towards
the center of the transmitter. The next step is to re-install the spring blocker (8): remove screw 7. The screw with the spring
can immediately be installed again on the other side. To re-install the spring blocker, move the stick fully to its end-point, fit the
spring blocker pin under the spring lever, then tighten the spring blocker screw.
6
5
4
3
1
2/7
8
