Power Meter Bulletin No. 3020IM9503R6/98
Chapter 3—Hardware Description December 1998
8 1998 Square D All Rights Reserved

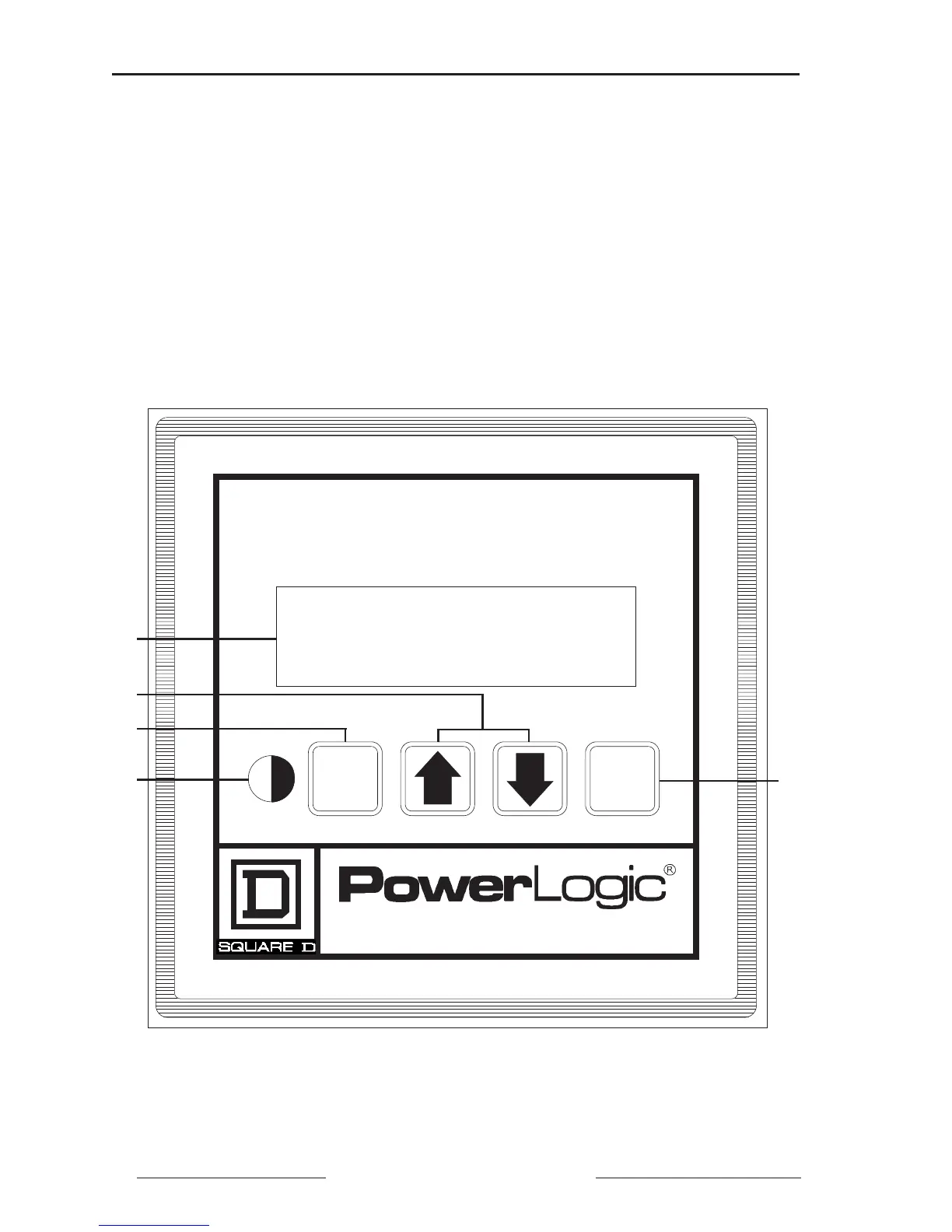

Figure 3-1: Power meter display components
Figure 3-1 shows the power meter display. Display components are listed
below:
2-Line Liquid Crystal Display. For local display of metered values.
Arrow Buttons. Press to move through meter display screens. In Setup,
Resets, and Diagnostic modes, press to change values and, on the PM-650
only, Alarm Setup and Alarm Log.
Mode Button. Press to scroll through the available modes.
Contrast Button. Press to change the contrast of the display.
Select Button. Press to select modes and Setup, Resets, and Diagnostic
values. On the PM-650 only, use this button to select Alarm values.
Power Meter
Mode
Select
