Bulletin No. 3020IM9503R6/98 Power Meter

December 1998 Chapter 5—Wiring

Display

Communications

Port

Load

Line

AØ

BØ

CØ

VDS

Fuses

Voltage

Control

Power

Comms

Current

KYZ

Top

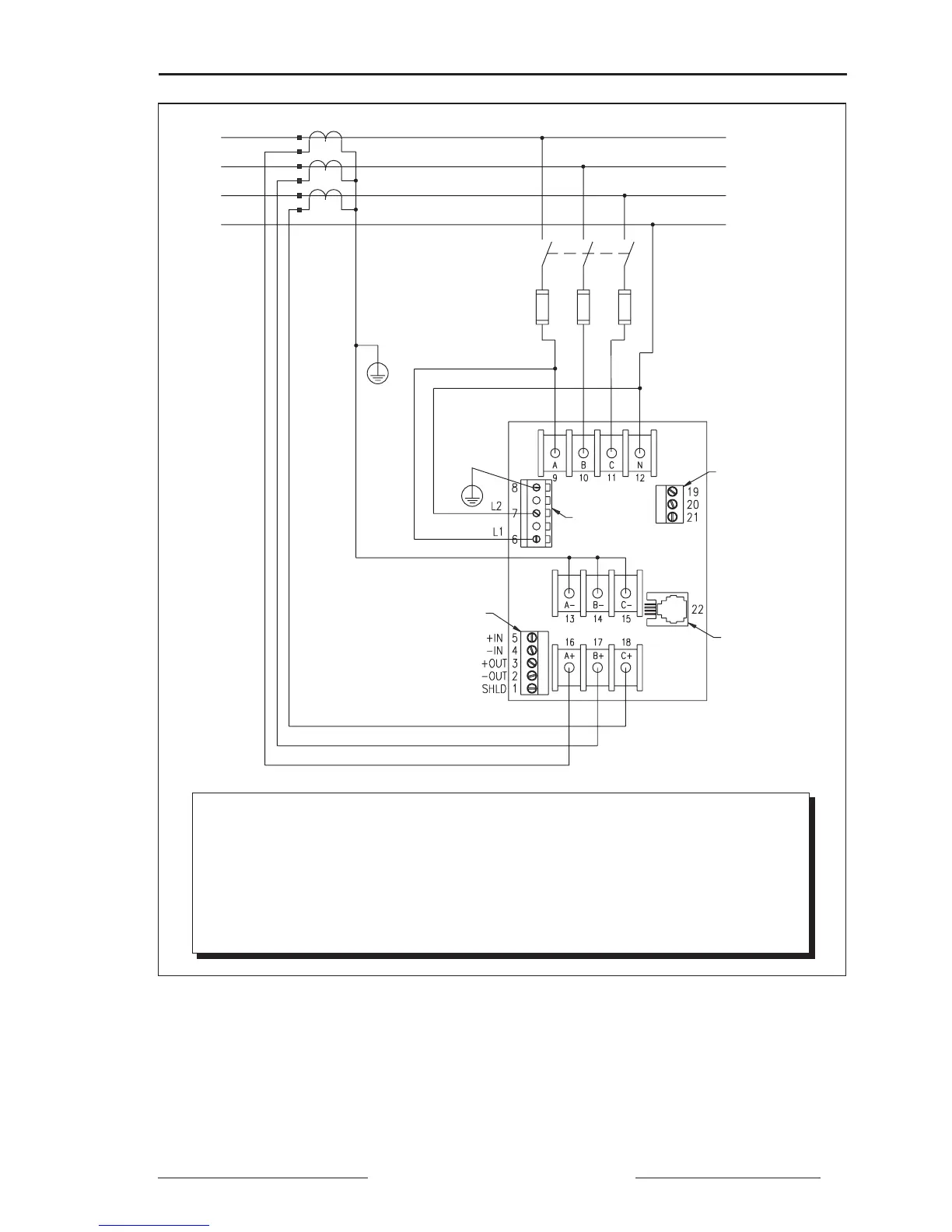

Figure 5-6: 3-phase, 4-wire wye, ground and direct voltage connection, with 3 CTs

Note: Control power can be drawn from fused voltage inputs L-L, or L-N, or an

external source. See page 22 for CPT and fuse recommendations.

Control power range: L1-L2 90–600 Vrms

90–300 Vdc

Installation Category II
