Power Meter Bulletin No. 3020IM9503R6/98

Appendix B—Dimensions December 1998

72  1998 Square D All Rights Reserved

Inches

Millimeters

4.50

114

3.81

96.7

6.08

154

4.75

121

3.63

92

4.50

114

1.26

32

4.50

114

APPENDIX B—DIMENSIONS

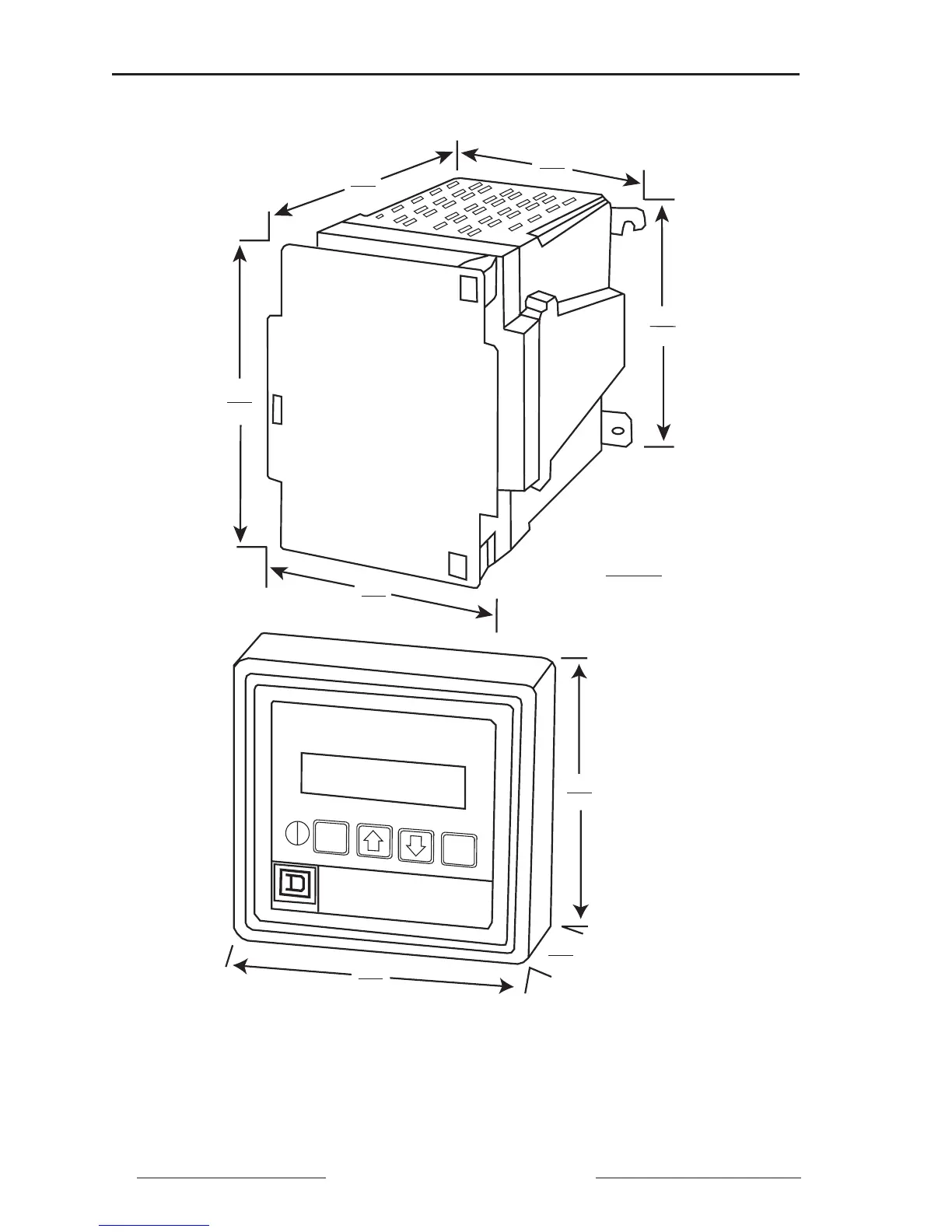

Figure B-1: Dimensions of power meter and display
