Power Meter Bulletin No. 3020IM9503R6/98

Appendix D—Additional Wiring Diagrams December 1998

Display

Communications

Port

Load

Line

AØ

BØ

CØ

VDS

Fuses

Voltage

Control

Power

Comms

Current

Fuses

Wye PT

Connection

(120 V L-N

Secondaries)

Fuse

CPT

(120 or 240 Vac

Secondary,

Projected 10 VA)

CDS

KYZ

Top

Fuse

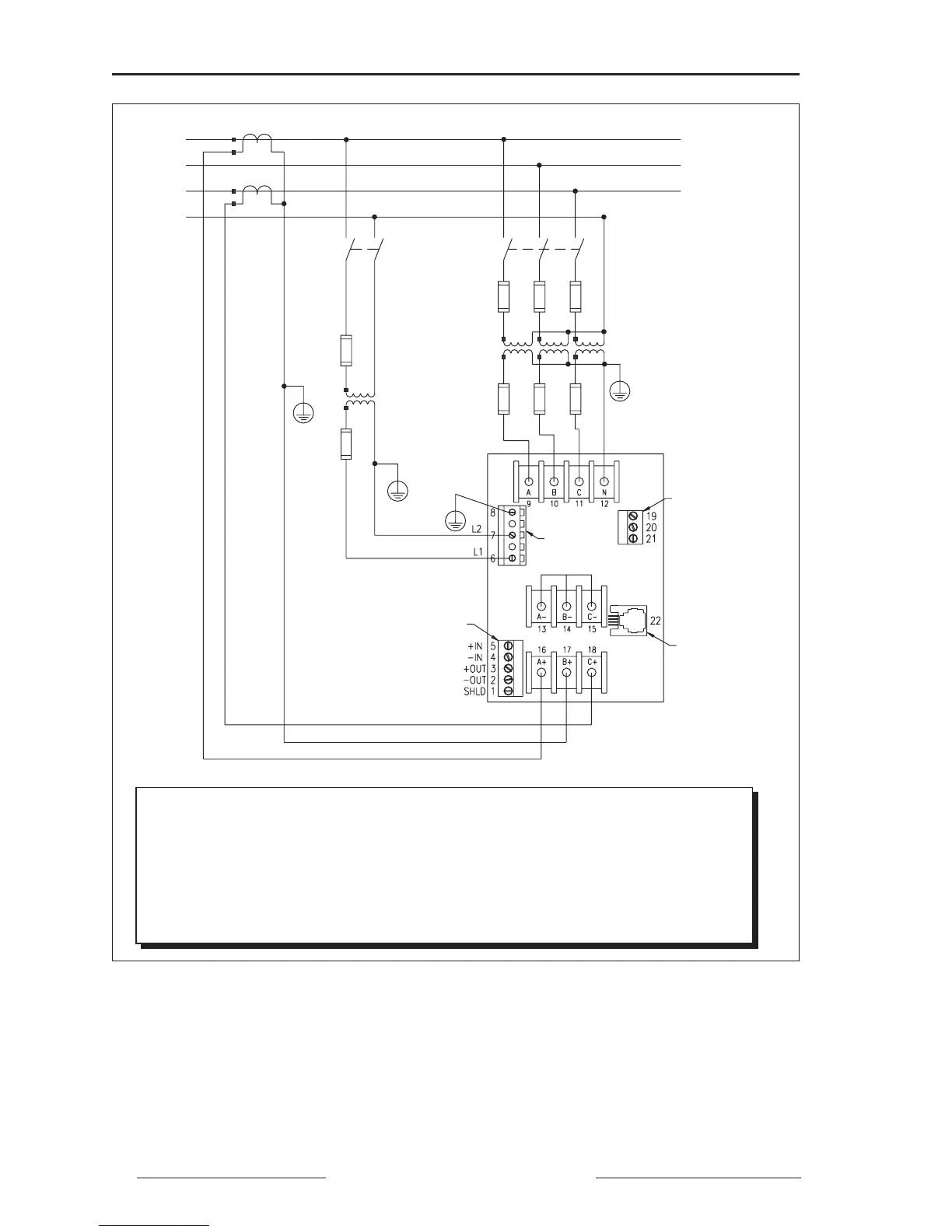

Figure D-3: 3-phase, 4-wire wye, 3-wire load with 3 PTs and 2 CTs

Note: Control power can be drawn from fused voltage inputs L-L, or L-N, or an

external source. See page 22 for CPT and fuse recommendations.

Control power range: L1-L2 90–600 Vrms

90–300 Vdc

Installation Category II
