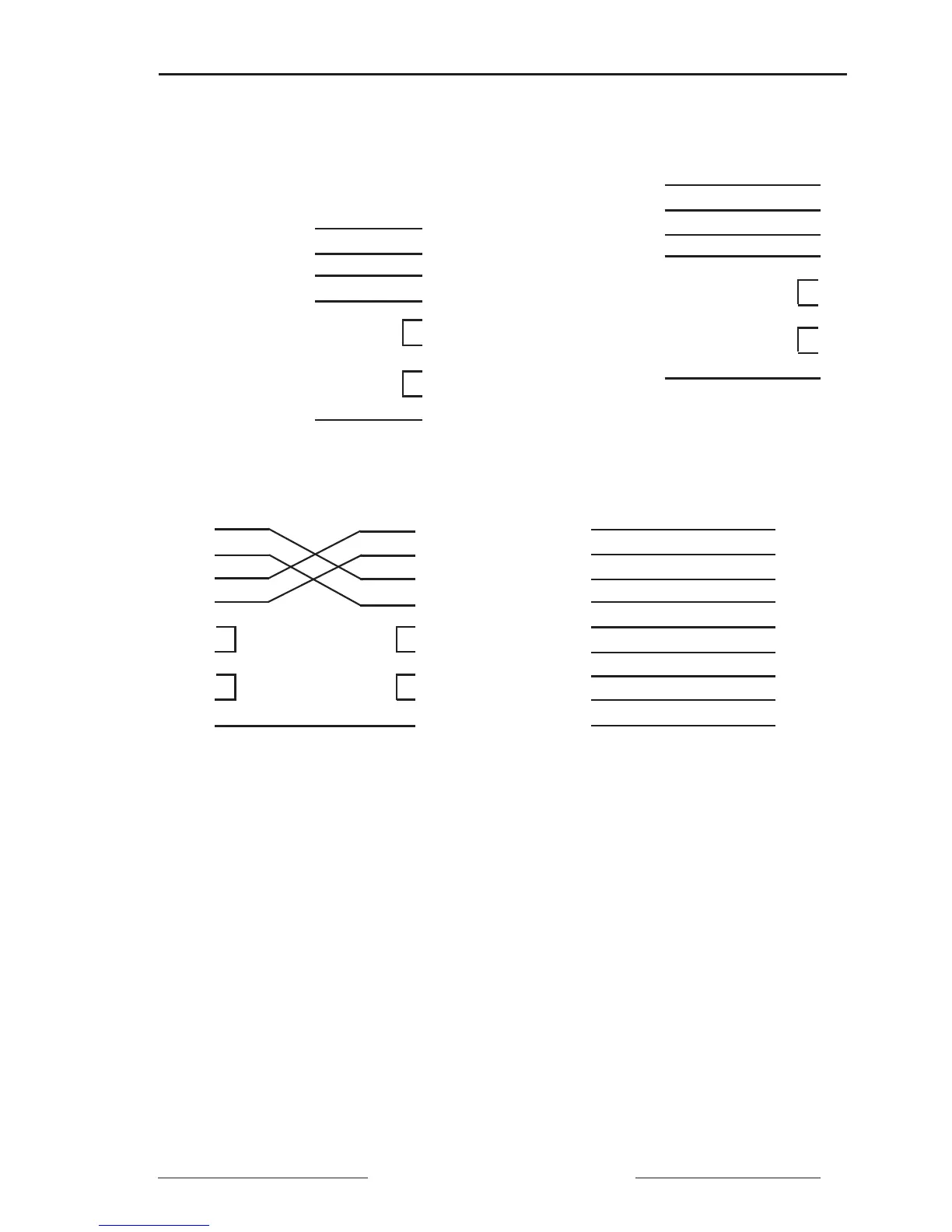

APPENDIX C—COMMUNICATION CABLE PINOUTS
IN- (4)—White 1
IN+ (5)—Green 2
OUT- (2)—Black 3
OUT+ (3)—Red 4
5
6
7
8
SHLD (1) Shield 9
Male DB-9
Connector
Power Meter
Terminal
CAB-107
11
22
33
44
55
66
77
88
99
CC-100
22
33
44
55
66
77
88
20 20
22 22
CAB-102, CAB-104
TXA—White 1
TXB—Green 2
RXA—Black 3
RXB—Red 4
5
6
7
8
Shield—Shield 9
CAB-108
