Powtran PI500 series User Manual

Chapter 4 Installation and commissioning
18
Chapter 4

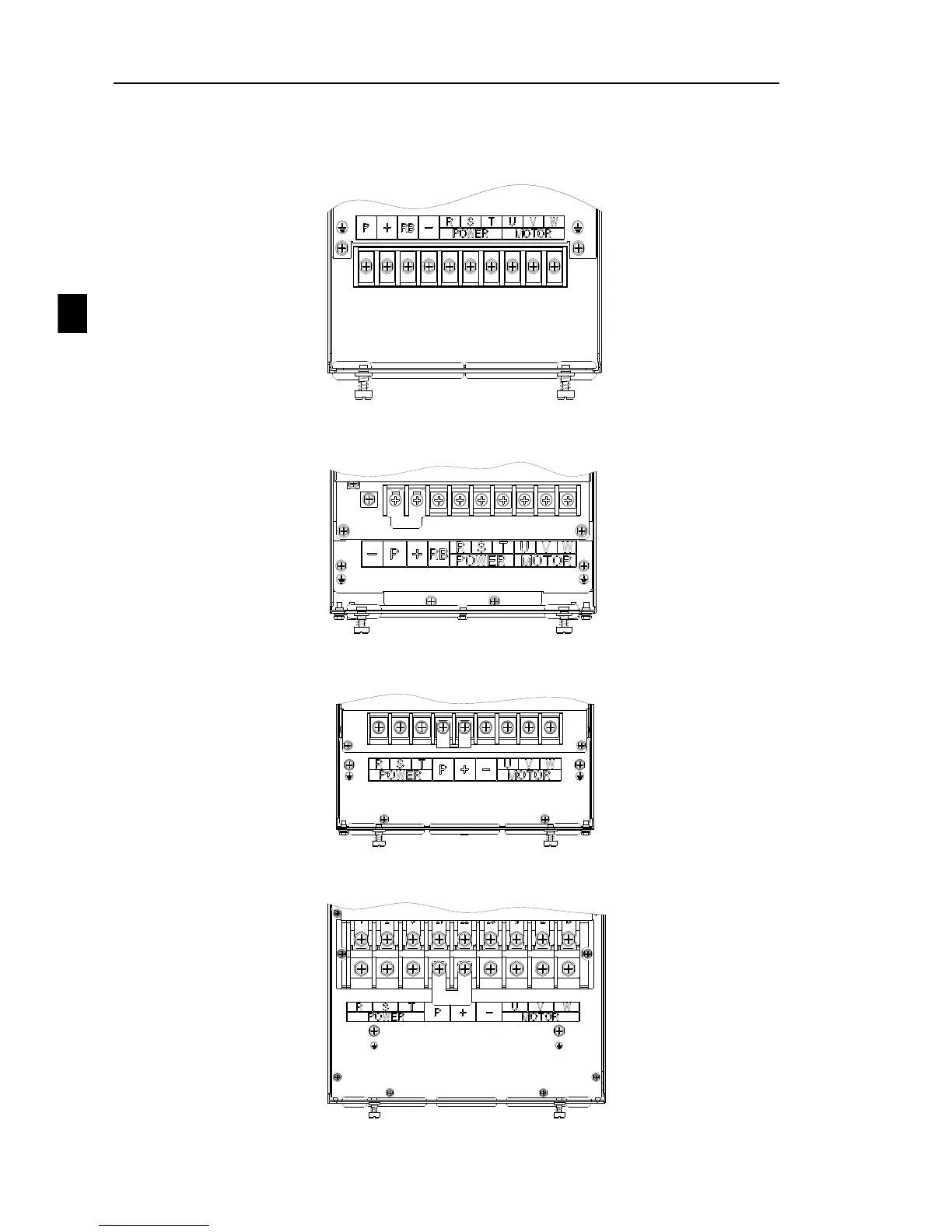

4-4.Main circuit terminal
4-4-1.Main circuit terminal arrangement
1.7.5kW~15kW G3 main circuit terminal
Diagram 4-4：7.5kW~15kW G3 main circuit terminal
2.18.5kW~22kW G3 main circuit terminal
Diagram 4-5：18.5kW~22kW G3 main circuit terminal
3.30kW~37kW G3 main circuit terminal
Diagram 4-6：30kW~37kW G3 main circuit terminal
4.45kW~75kW G3 main circuit terminal
Diagram 4-7：45kW~75kW G3 main circuit terminal
