Chapter 4 Installation and commissioning
19
Chapter 4

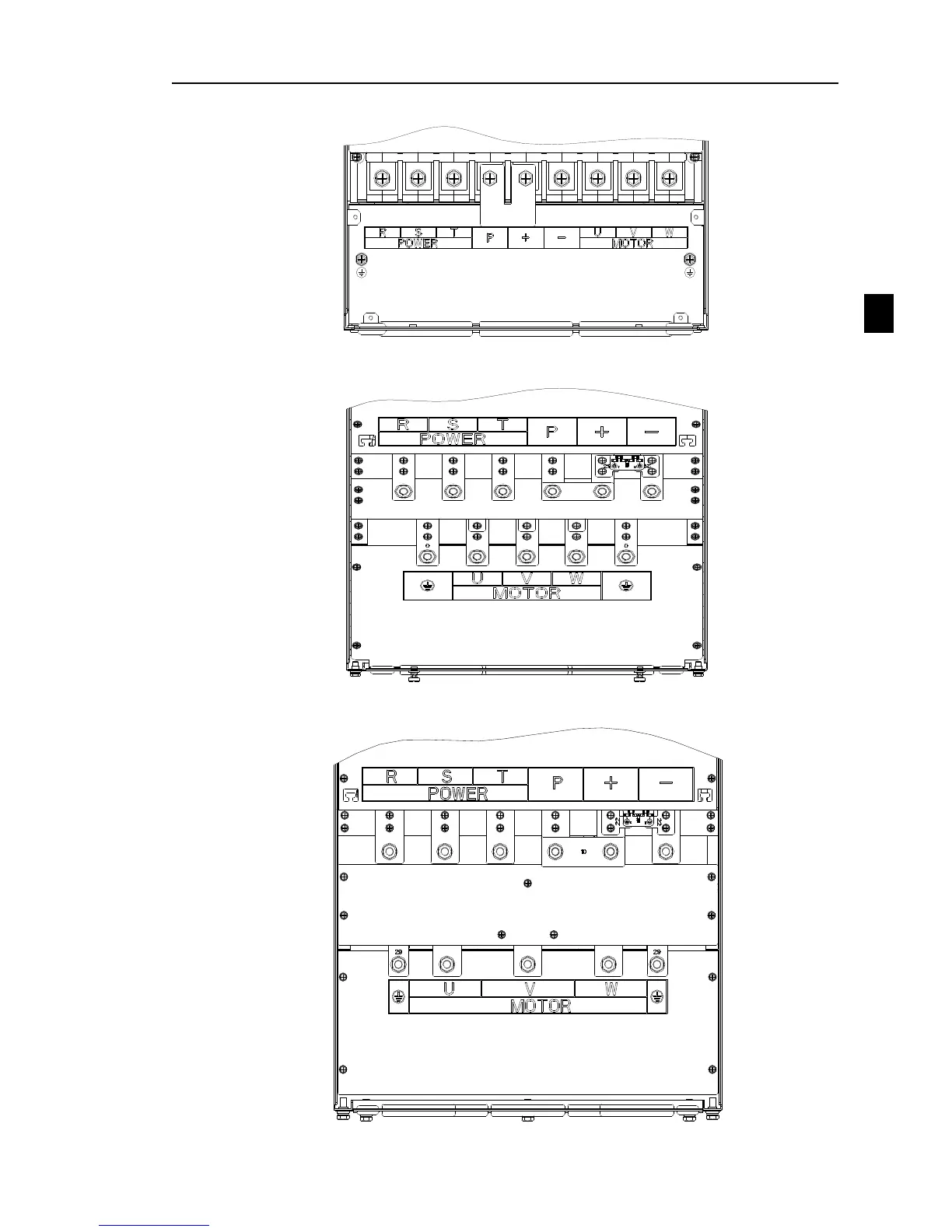

5.93kW~110kW G3 main circuit terminal
Diagram 4-8：93kW~110kW G3
6.132kW main circuit terminal
132G3/160F3
Diagram 4-9：132kW G3 main circuit terminal
7.160kW～220kW G3 main circuit terminal
Diagram 4-10：160kW～220kW G3 main circuit terminal
