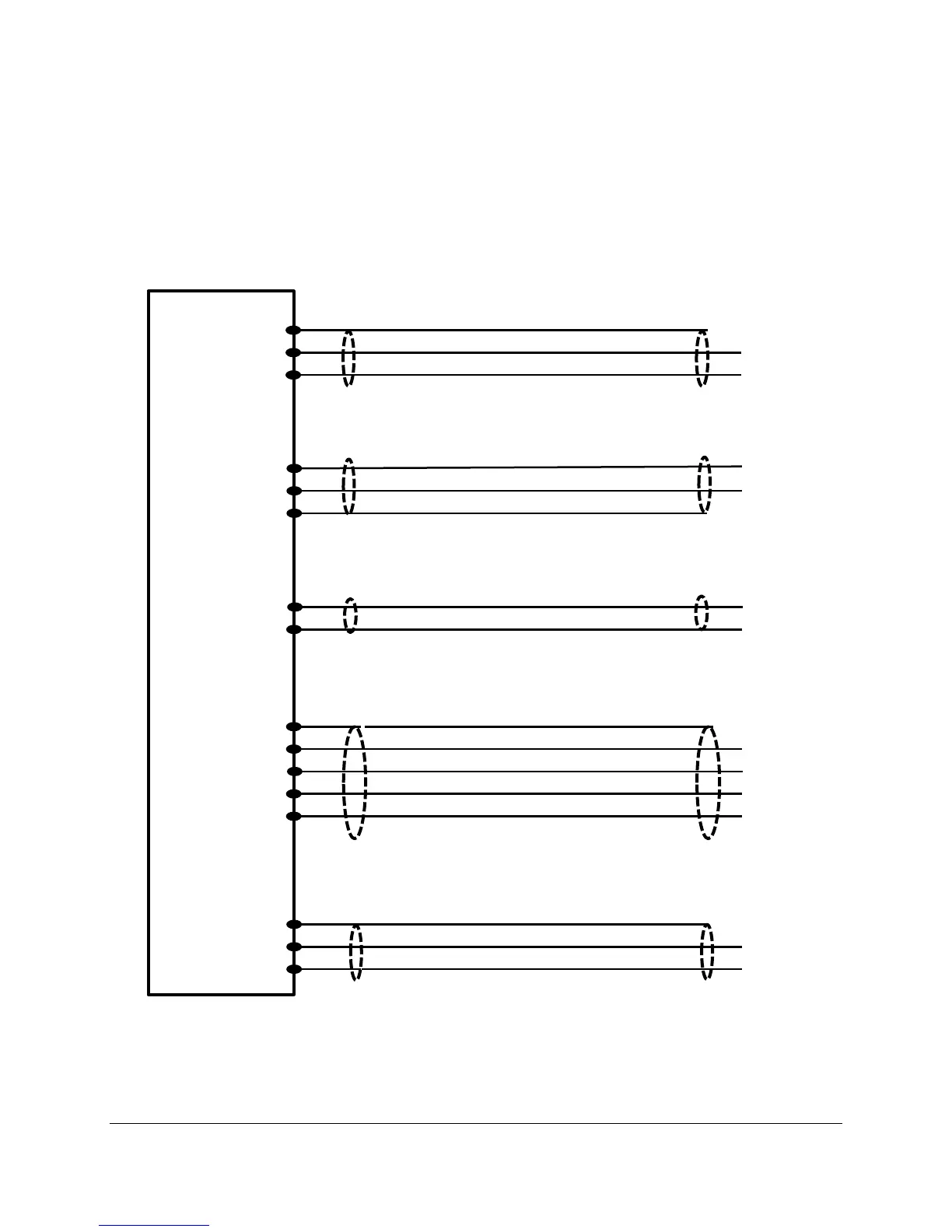

Recommended Cable Interface
When connecting up to external devices via the WMA-5 terminal block we recommend the following cable
type and lengths.
WMA-5 Terminal Block
Vout
GND
Shielded cable to external relays or Programmable Logic Controller
Typical cable Belden 9609 4C 24 Shielded. Length 10 Ft Maximum.
Shielded cable to Data Logger or Programmable Logic Controller
Typical cable Belden 8413 2C 24 Shielded. Length 5 Ft Maximum.
GND
Alarm 1
Alarm 1
Alarm 2
Alarm 2
GND
TX RS232
RX RS232
Supply 4-20
Iout 4-20
GND
GND
5V out
AUX1 in
Shielded cable to PC or Data Logger
Typical cable Belden 9609 4C 24 Shielded. Length 10 Ft Maximum
Shielded cable to Data Logger
Typical cable Belden 8413 2C 24 Shielded. Length 10 Ft Maximum.
Shielded cable to sensor of manual zero switch
Typical cable Belden 9609 4C 24 Shielded. Length 5 Ft Maximum.
