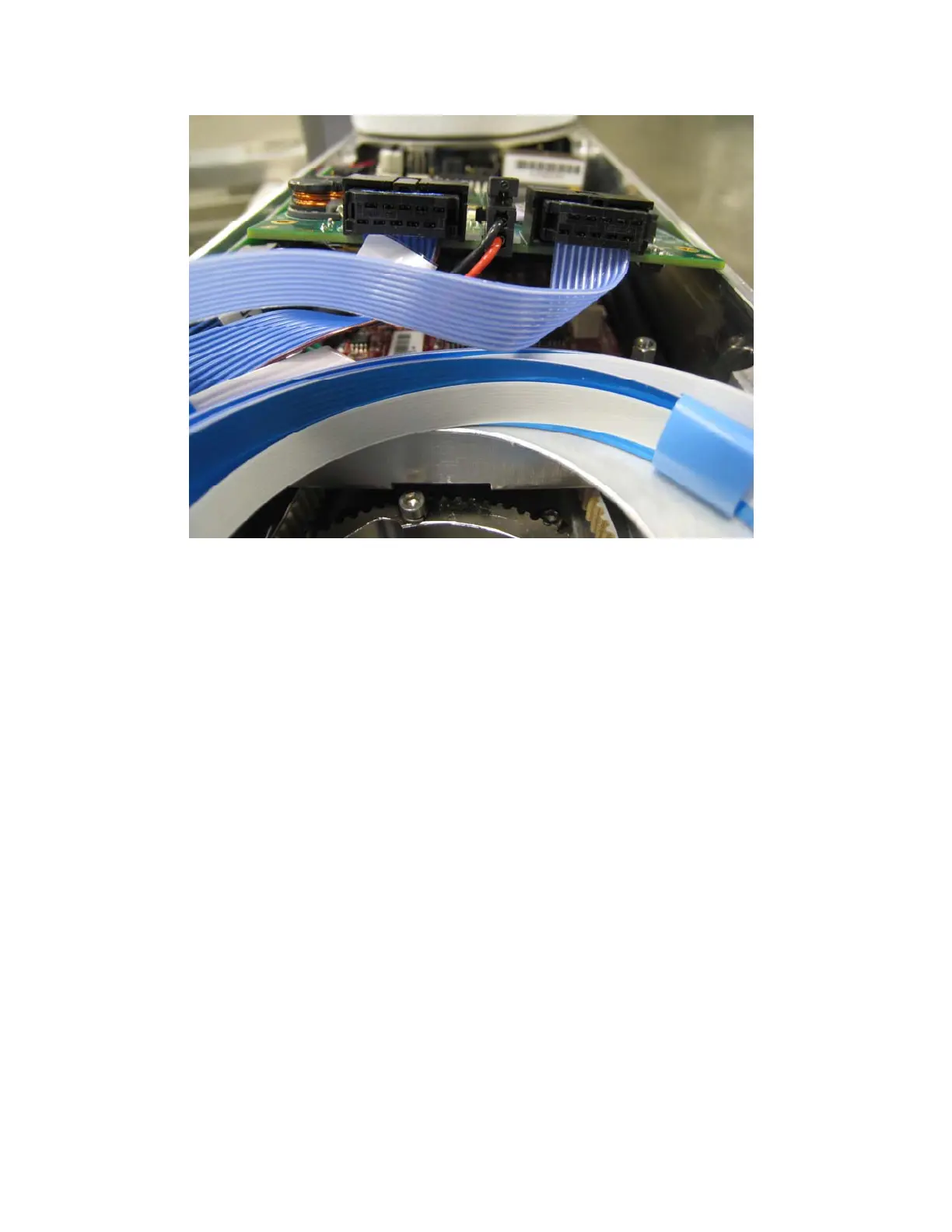

12. Attach the Harness Retaining Clip near the Robot Controller to retain the Robot Controller end of
the Harness.
13. Coil the replacement harness into 3 loops.
14. Fold the ends of the harness down at a right angle to replicate the replaced harness.
15. Insert the connectors down thru the Elbow into the Outer Link.
16. Attach the J3 Harness Retaining Clip with the M3 X 4 BHCS and the 1/32 in thick Neoprene
rubber strain relief pad around the harness to protect it along with the bent stainless steel
retaining clip that protects the harness fold.
