PreCise PF400 - System Dimensions; Working Volume

To Next Page

To Previous Page

Installation Information

System Dimensions

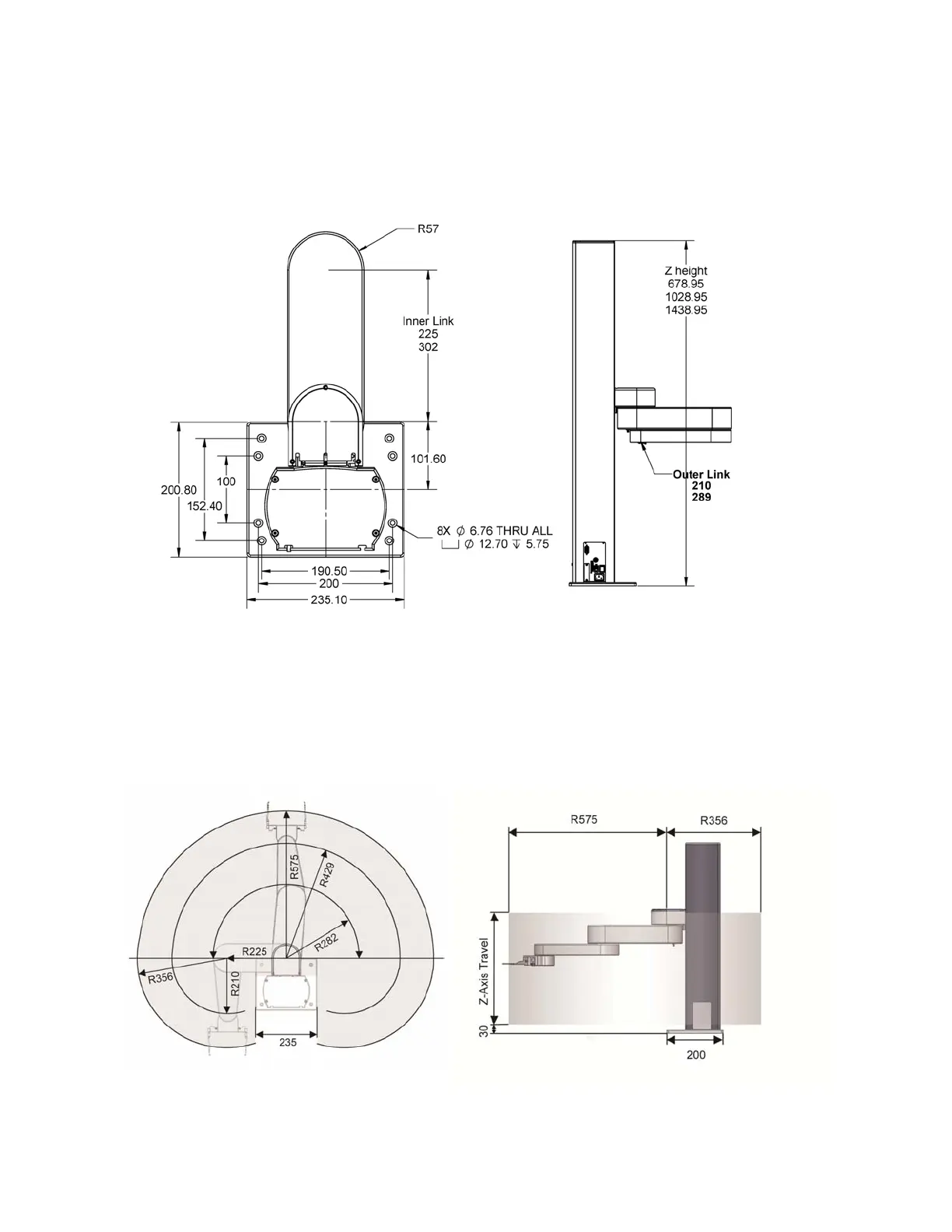

Both top and right views are shown below. All dimensions are in millimeters.

Mounting Dimensions for PF400, Standard Reach

(Increase height by 22mm for PF3400)

(For XR robot, R575 increases to R731 and inner link length increases from 225 to 302mm)

Working Volume
