Model PD6000 Analog Input Process Meter Instruction Manual

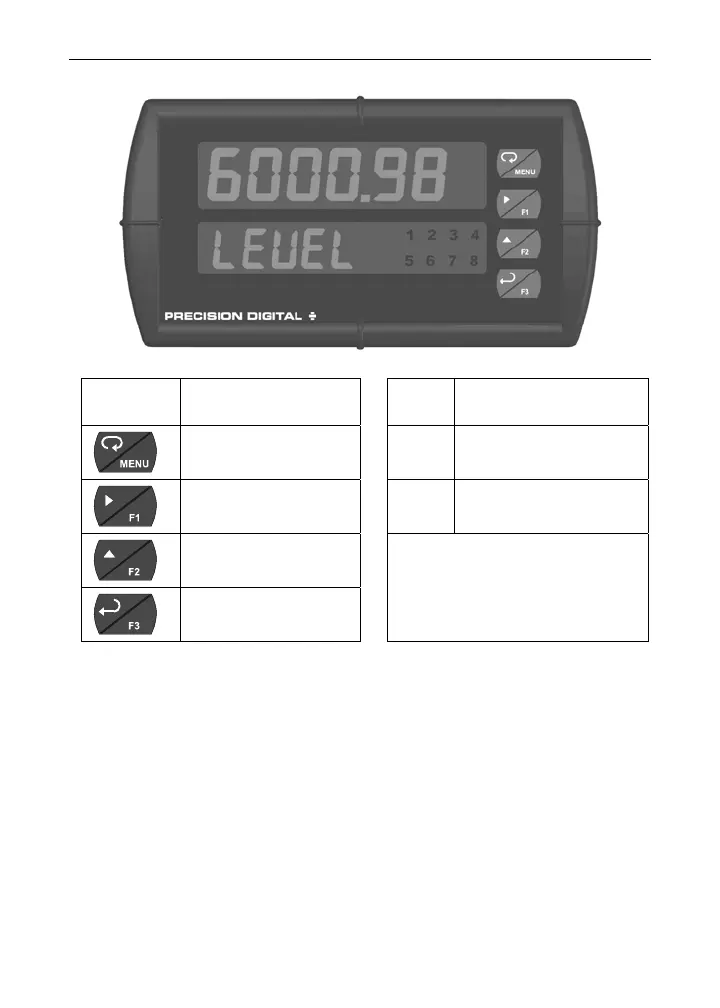

Front Panel Buttons and Status LED Indicators
Button
Symbol
Description LED Status
Menu
1-4 Alarm 1 – 4 indicator
Right arrow/F1
5-8 Alarm 5 – 8 indicator
Up arrow/F2
Note:
Alarms 5-8 are enabled
when relay expansion
module is installed.
Enter/F3
• Press the Menu button to enter or exit the Programming Mode at
any time.
• Press the Right arrow button to move to the next digit during digit or
decimal point programming.
• Press the Up arrow button to scroll through the menus, decimal
point, or to increment the value of a digit.
• Press the Enter button to access a menu or to accept a setting.
• Press and hold the Menu button for three seconds to access the
advanced features of the meter.
