Note: Leave the connector on the side of the P80 as shown in below, as
it might be necessary to access it for troubleshooting.

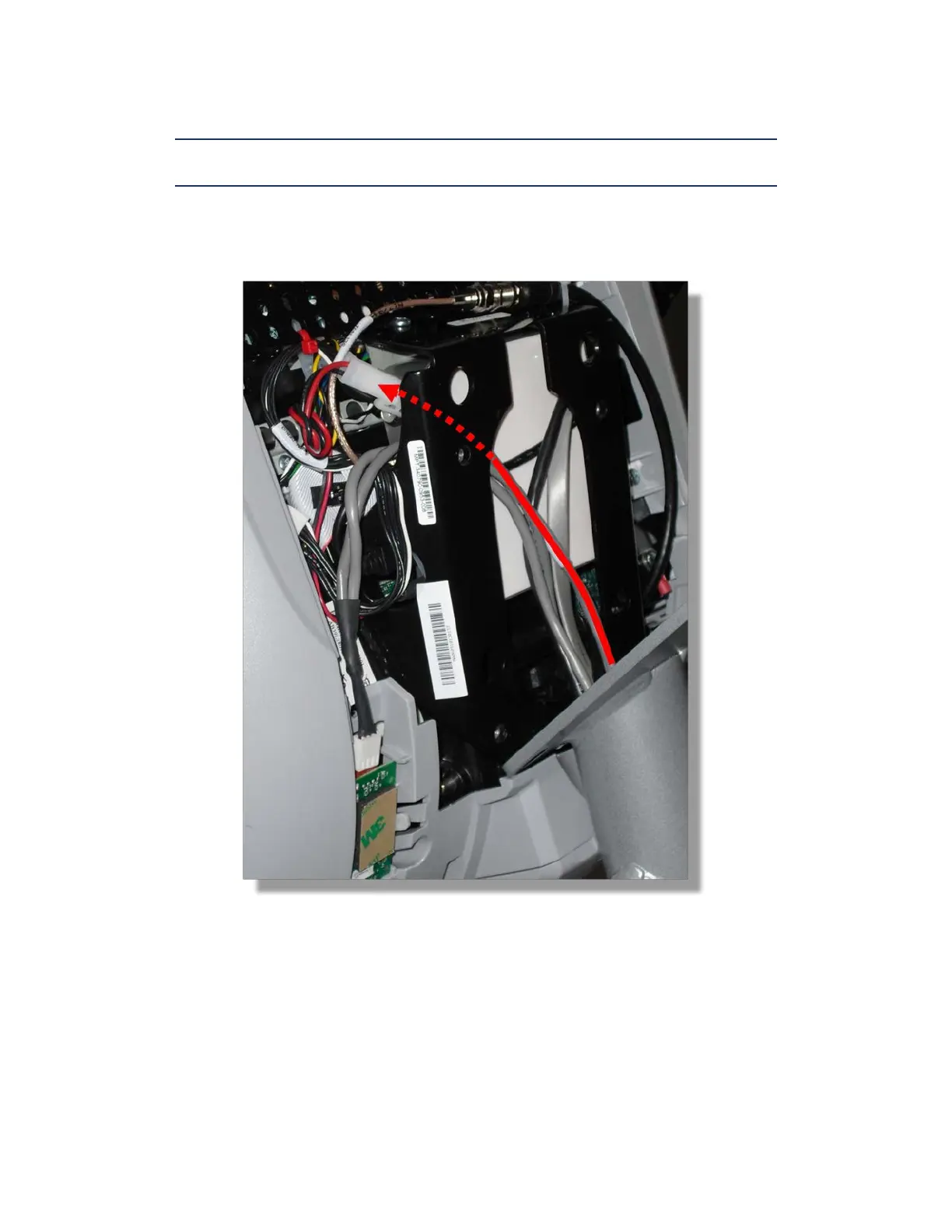

Figure 42: P80 Power Cable Routing
7 Route the Heart Rate cable through the upper left corner of the
weldment and connect it to the HR PCA. Route any excess Heart Rate
cable into the rectangular center section of the dash assembly.
To Next Page
