Page
317

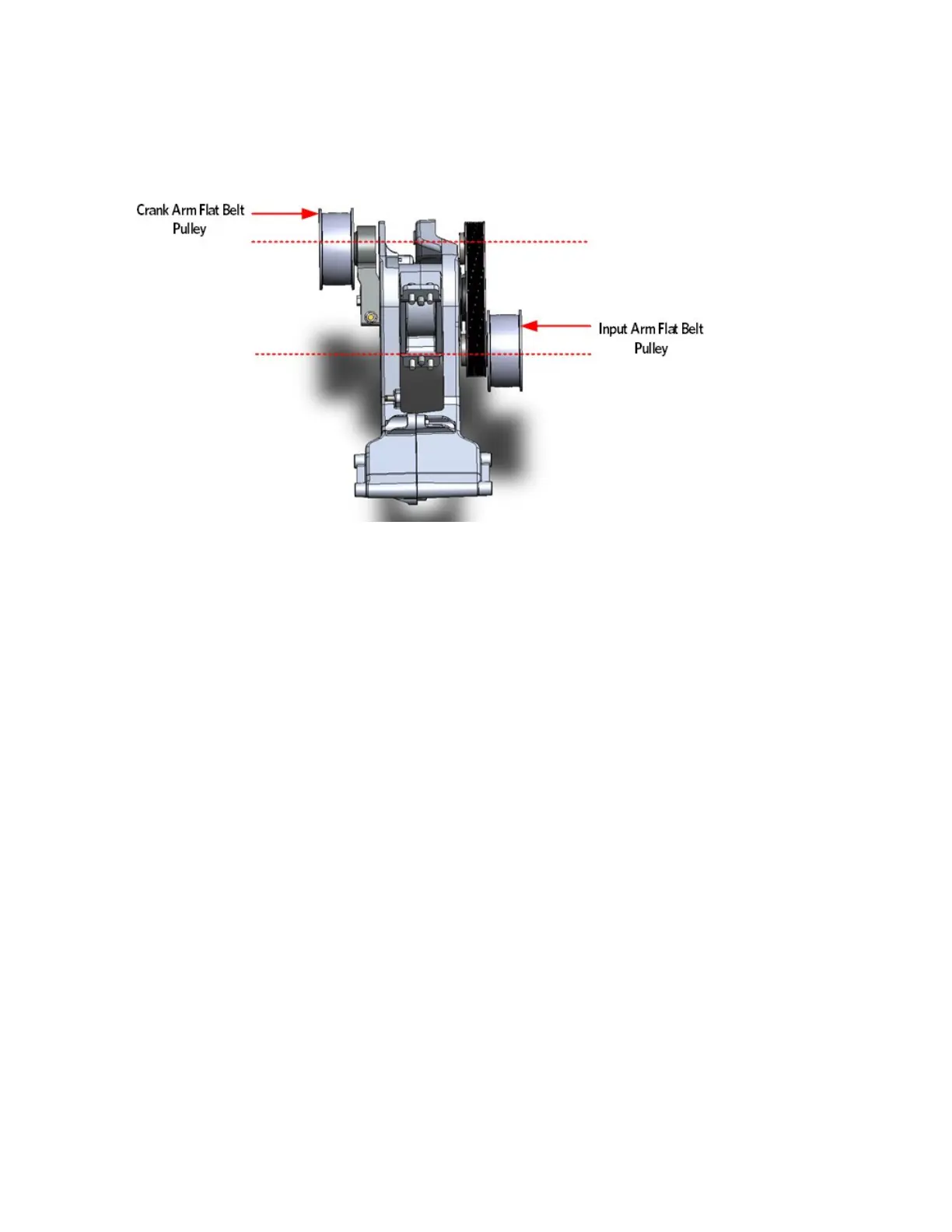

Figure 263: Crank Arm Alignment
28
Install the crank arm pinch bolt,
washer and lock nut. Torque the
pinch bolt and lock nut to 300 inch
pounds (25 ft
-
lbs) or 25 foot
pounds.
