Page
172
7
Repeat the process for the remaining belt guard.

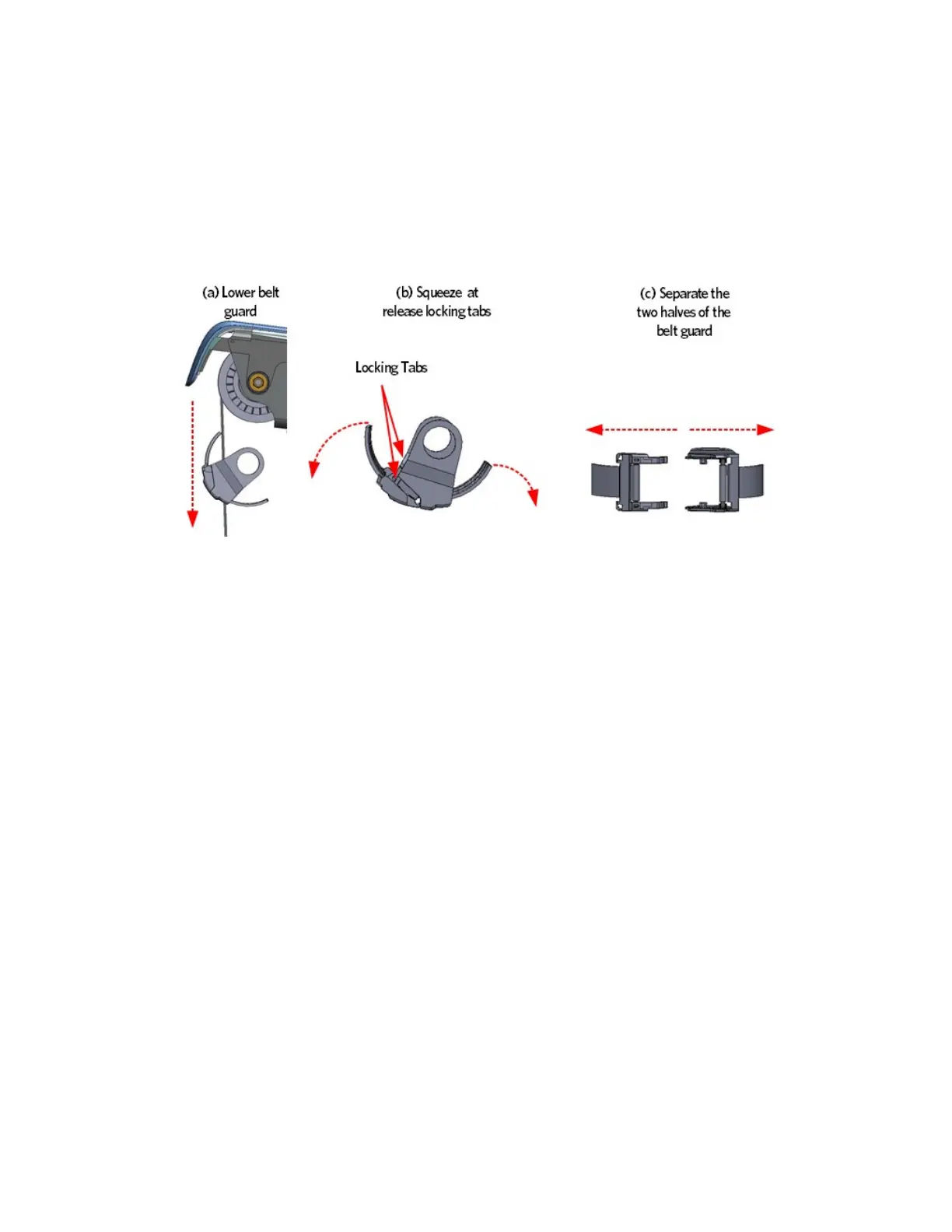

Figure 91: Belt Guard Removal
Upp
er
A
rm
Grip R
emoval
8
Remove the two #10
-
24X.75 screws that secure the grip to the upper
arm, there is one screws on each side of the upper arm.
173
175
