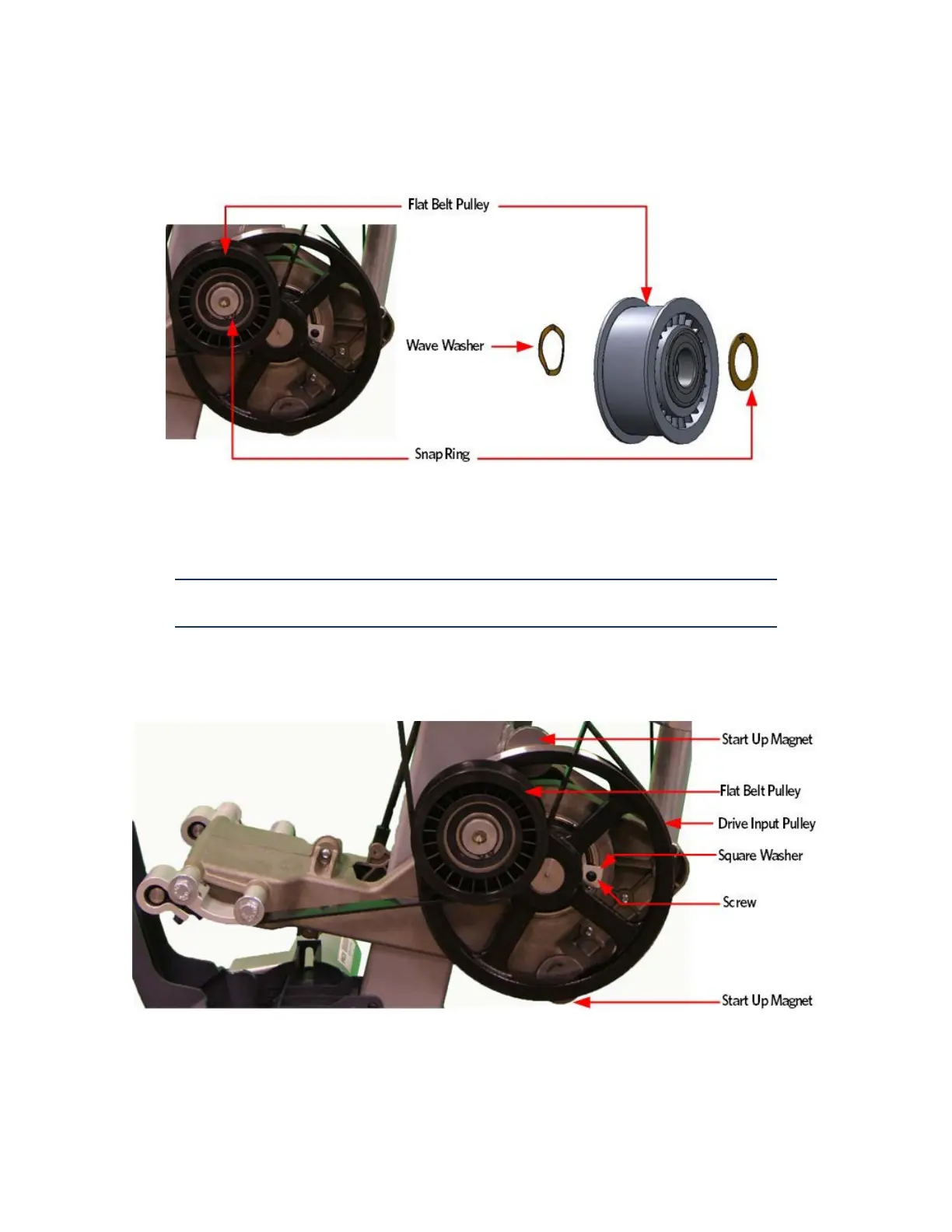

Figure 256: Drive Input Flat Belt Pulley
19 Remove the screw and square washer that secures the drive input
pulley assembly to the drive input housing. Pull the drive input
pulley out of the housing.
Note: If necessary a rubber mallet can be used to dislodge the input pulley
assembly from the housing by tapping on the input shaft.
Figure 257: Drive Input Assembly
