Precor AMT 835 - Figure 198: Front Arm Mounting Bolt; Figure 199: Tie Rods

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 261

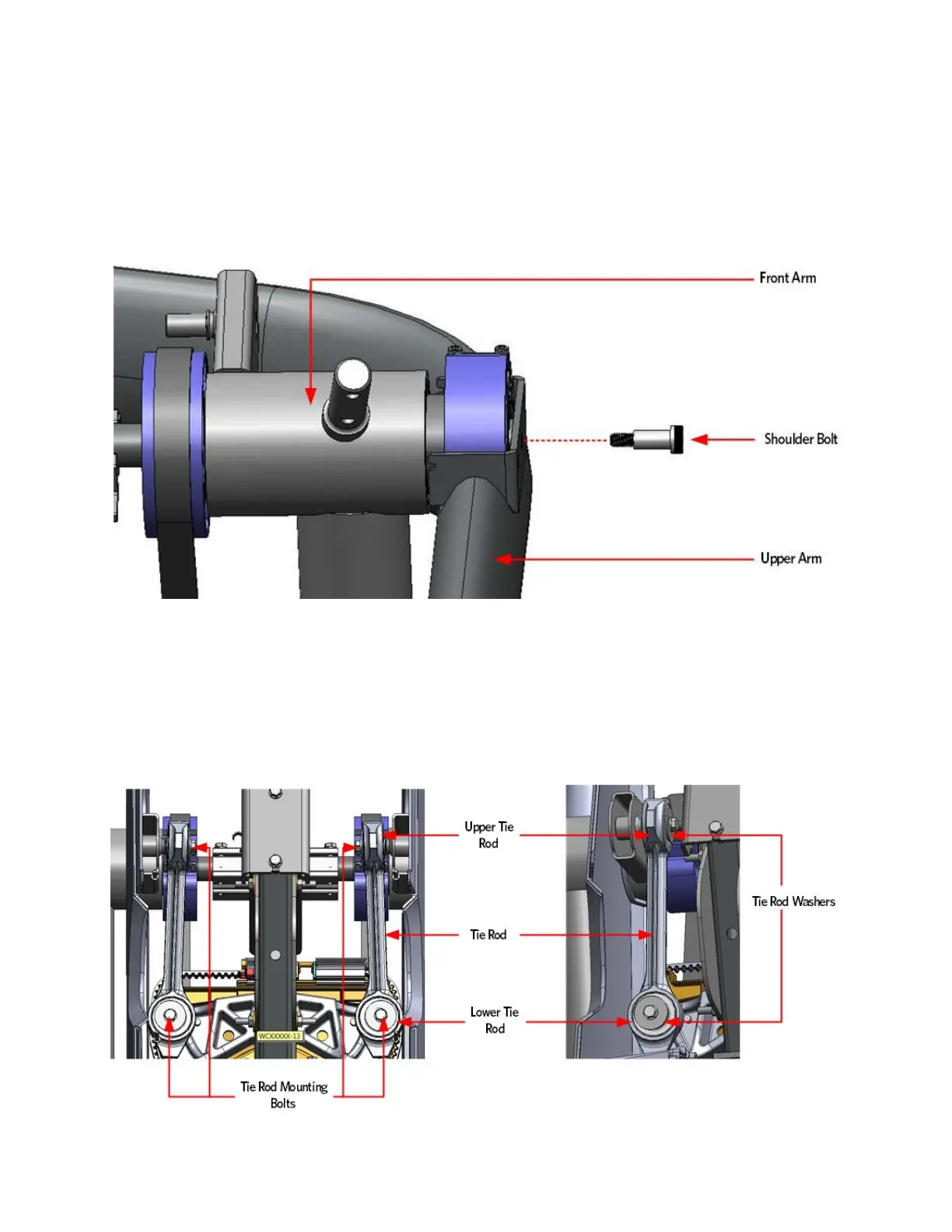

Figure 198: Front Arm Mounting Bolt
Tie Rod Installation
8 Fasten upper tie rod end to the cam assembly with the bolt and
washer, torque the bolt to 300 inch pounds (25 ft-lbs).
Figure 199: Tie Rods
