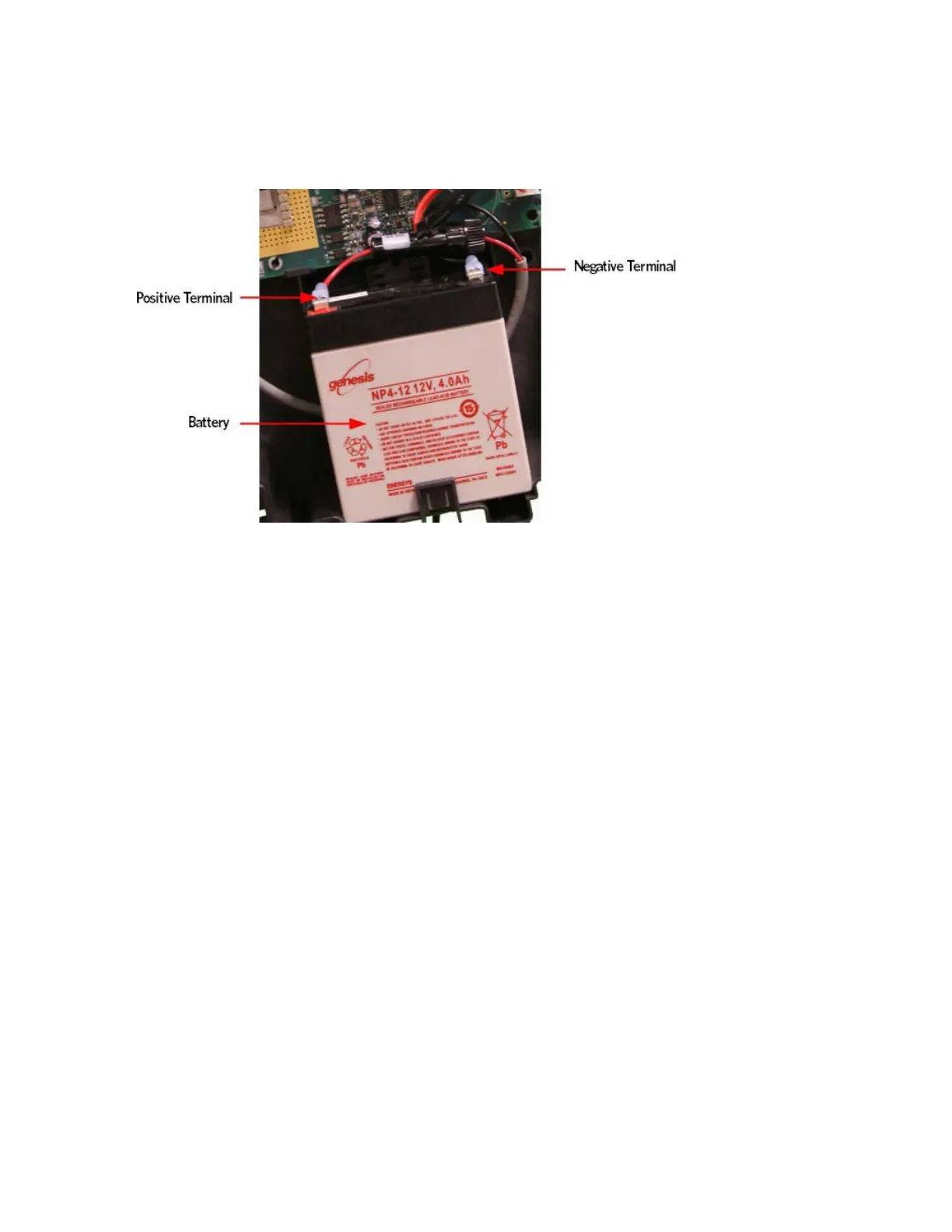

Figure 211: Battery
Replacing the Generator Belt
Procedure
1 Remove the covers as per procedure, Cover Replacement (on page 152).
2 Remove the tension from the inner flat belt pulleys by lifting up on
the stairarms, pulling the flat belts off the flat belt pulleys, and
then gently setting the stairarm down.
3 Loosen the generator mounting bolts.
4 Loosen the generator adjustment bolt until the top of the bracket
slots are resting on the generator mounting bolts.
5 Loosen the step up pulley mounting bolt.
6 Loosen the step up pulley adjustment bolt until tension has been
removed from the input pulley belt and has sufficient slack so that
the belt may be removed from the step up pulley.
