17 To loosen the crank arm mounting bolt, insert a socket extension
about twelve inches long or equivalent in the drive input housing
cavity, just below the crank arm to prevent rotation Remove the
crank arm bolt, washer and crank arm. It may be necessary to use a
Pitman arm puller or a 4 to 6 inch gear puller to remove the crank
arm. Do not use a hammer or mallet to remove the crank arm.

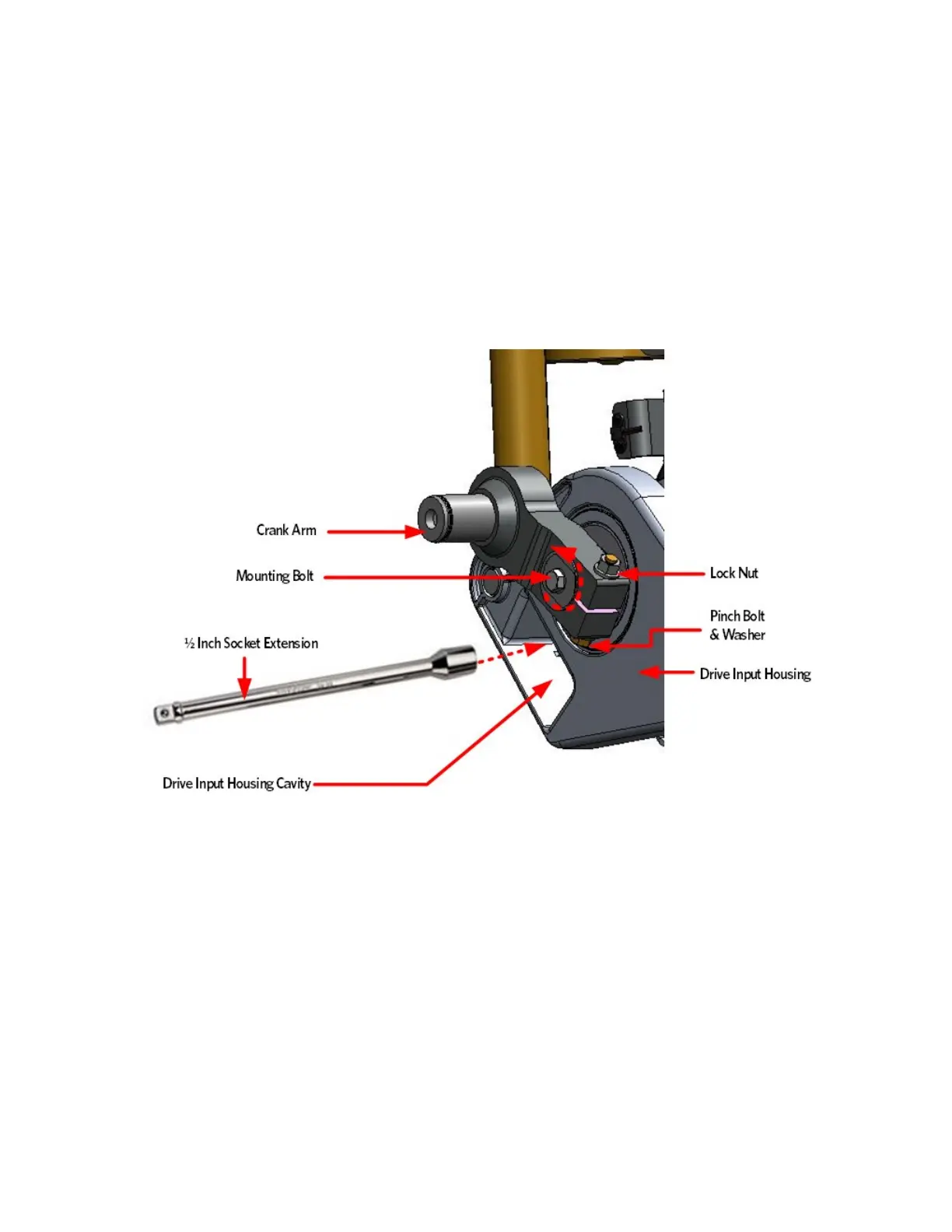

Figure 255: Crank Arm Bolt Removal/ Installation
18 Remove the snap ring from the flat pulley shaft located on to the
drive input pulley, remove the pulley and wave washer.
