Page 240

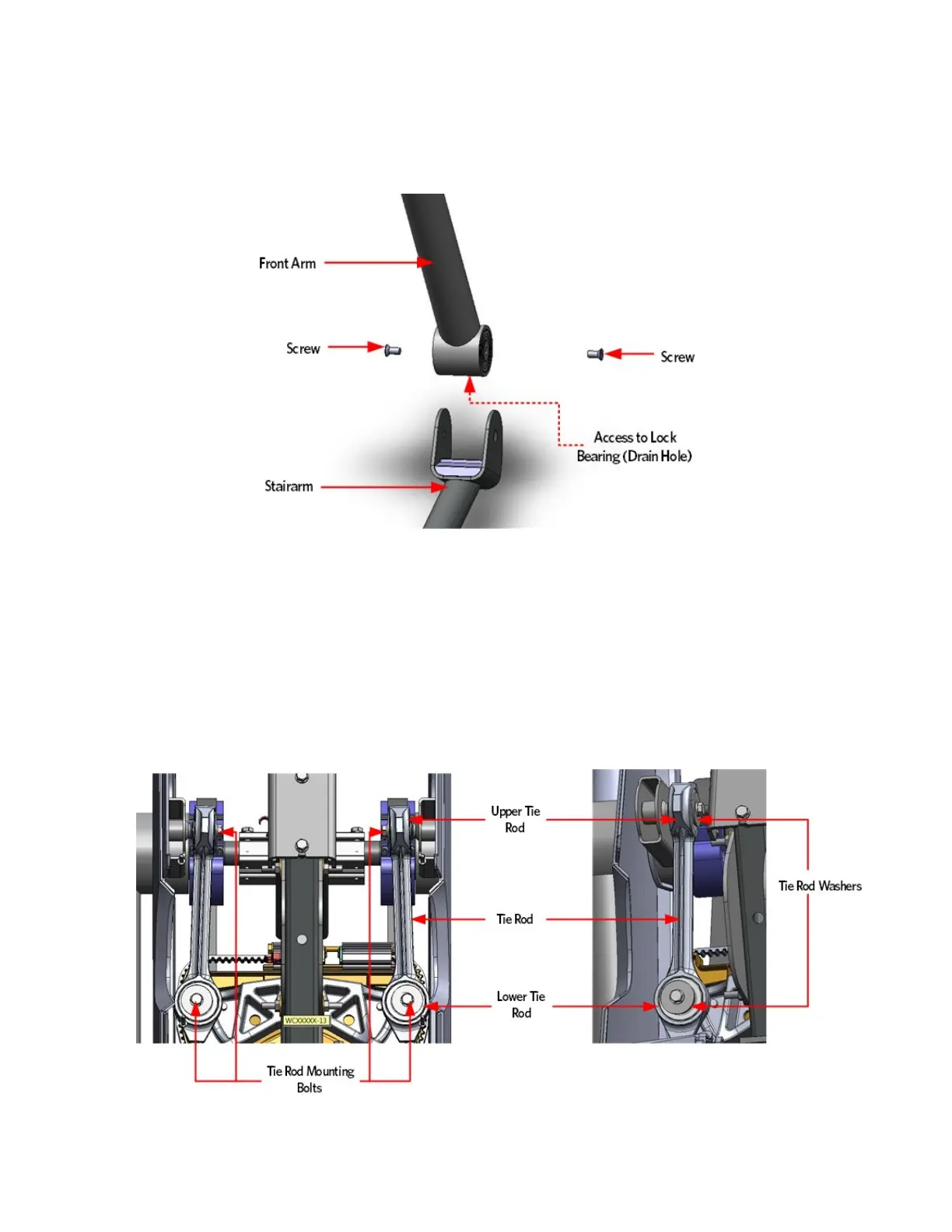

Figure 171: Stairarm and Front Arm Screw Locations
13 Remove the vertical handle bars.
Tie Rod Removal
14 Remove the tie rod mounting bolts and washers that secure each upper
tie rod end to the front arm assemblies.
Figure 172: Tie Rods
