Flat Belt Removal - Upper Arm Cam
Note: Any time the flat belt terminal screws are removed from the flat belt
clamp or cams, the screws must be discarded and replaced with new
screws.
7 Remove and discard the two 1/4-20X1 flat belt cam clamp screws and
shims that secure the flat belt to the clamp.

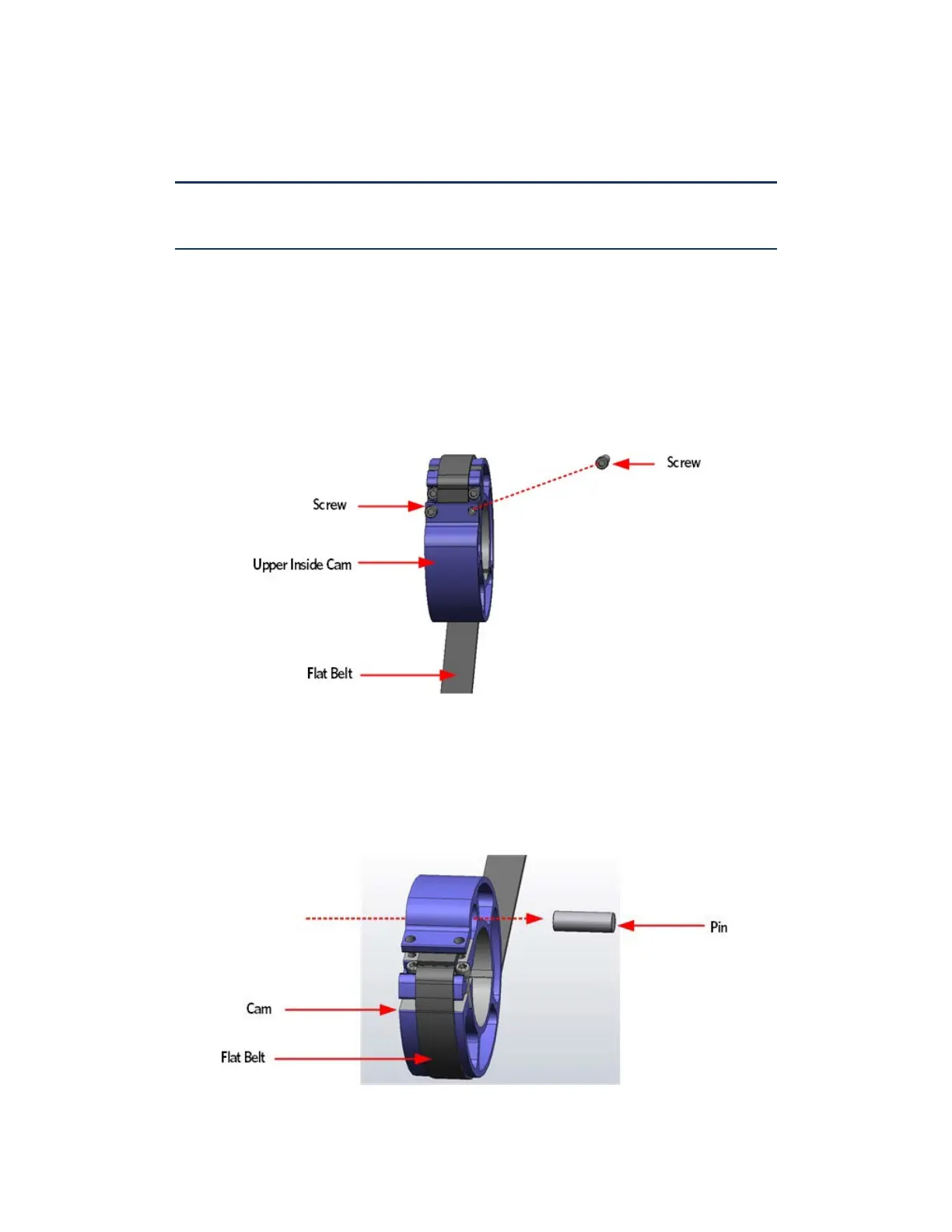

Figure 188: Upper Inside Cam Screw Removal
8 Using a screw driver tip, push out the pin from the flat belt loop
and cam clamp and then slide the flat belt out of the cam clamp.
Remove the flat belt.
Figure 189: Upper Inside Cam Pin Removal
