Page
245

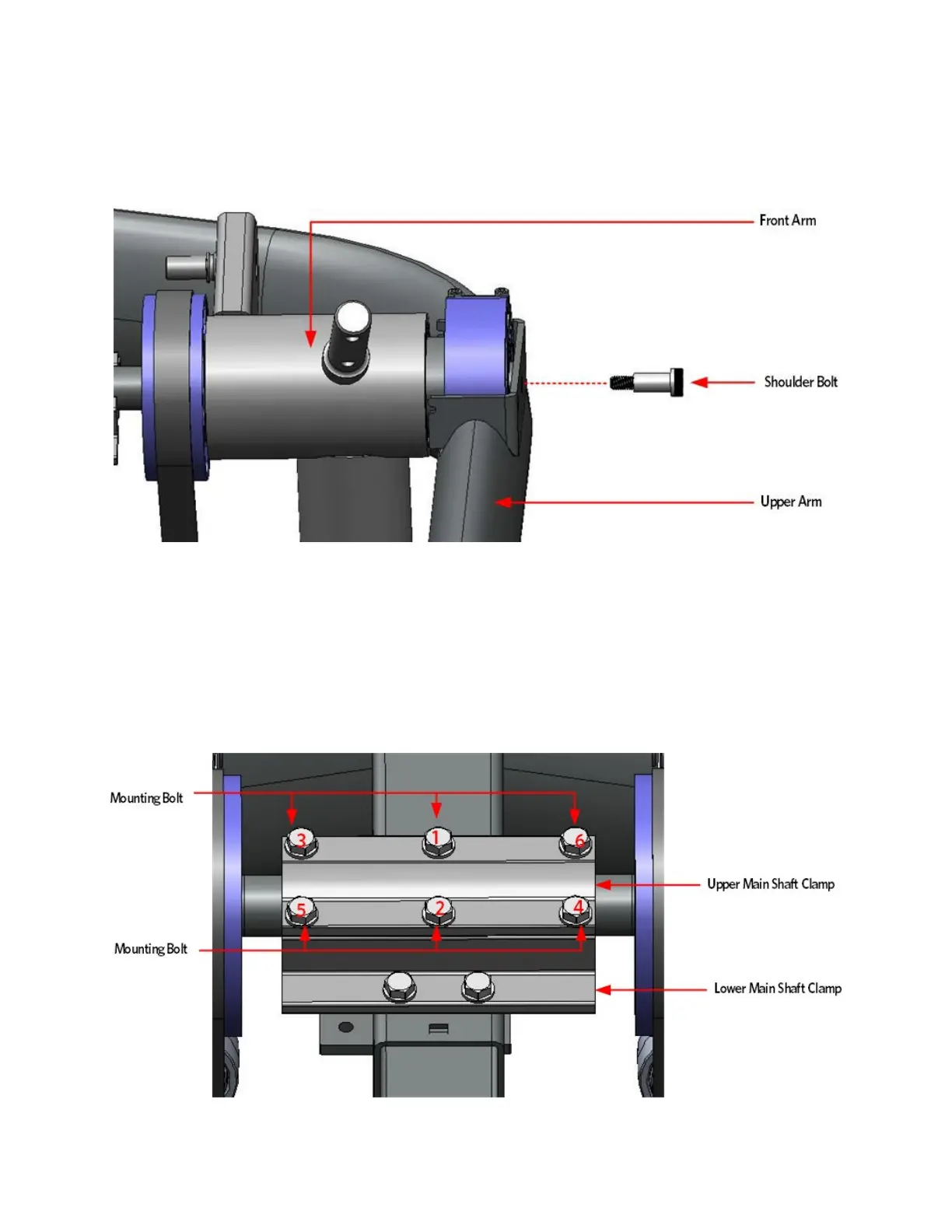

Figure 178: Front Arm Mounting Bolt
22
Insert and finger tighten the six main arm shaft bolts that
secure
the main shaft clamp to the lower main shaft clamp.
23
Use the following sequence to ensure the upper arm main shaft is
properly secured to the front arm shaft; torque the bolts to 160
inch pounds.
Figure 179: Main Shaft Clamp Bolts
-
Torque Sequence
