Front Arm Removal
15 Remove the shoulder bolts that secure the outside cam tubes to the
upper arms. Note: This step must be performed before the main shaft
clamp is removed, otherwise the shaft will rotate when the bolt is
turned and you will not be able to be remove the bolt.

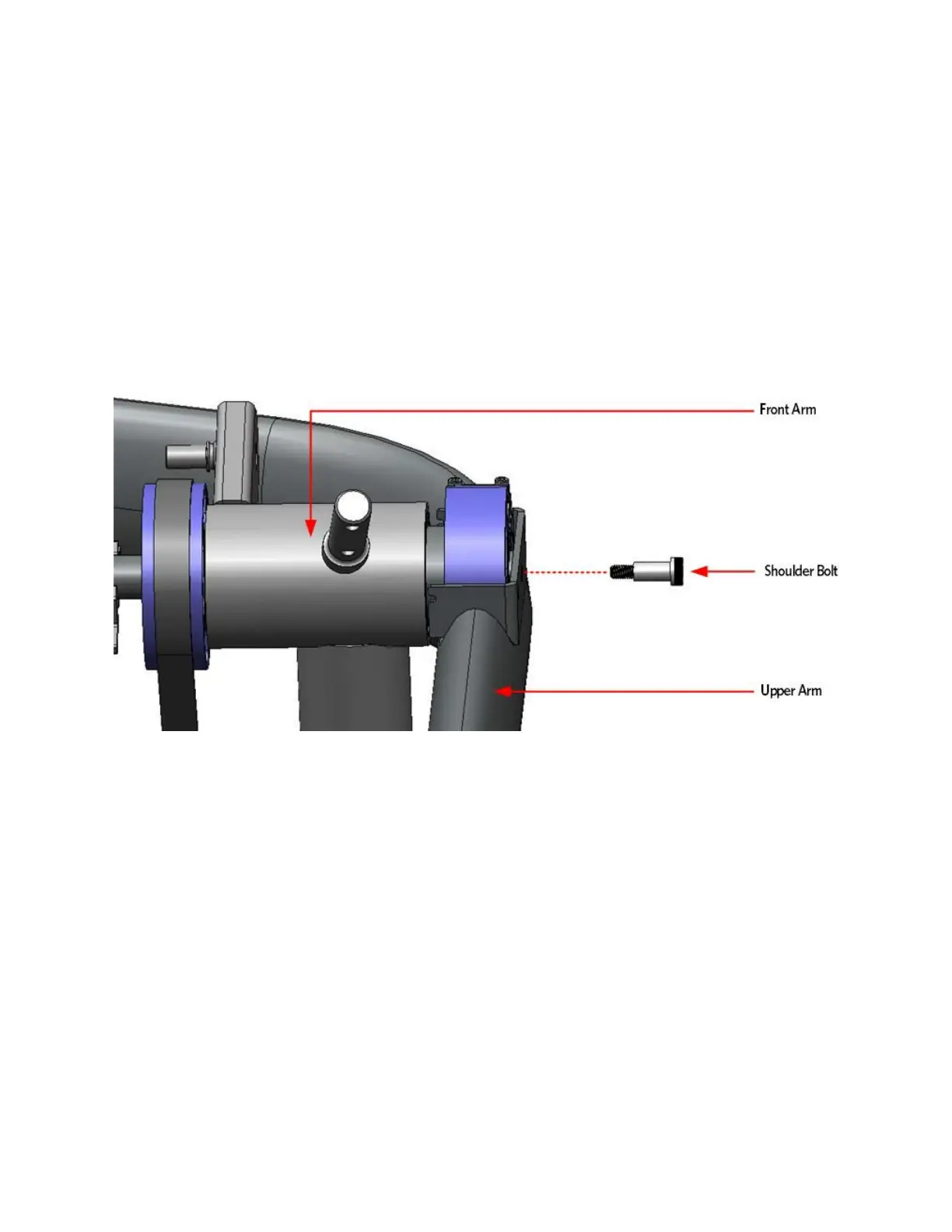

Figure 173: Front Arm Mounting Bolt
16 Remove the six bolts that secure the upper main shaft clamp to the
lower main shaft clamp. Remove the top main shaft clamp.
