© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

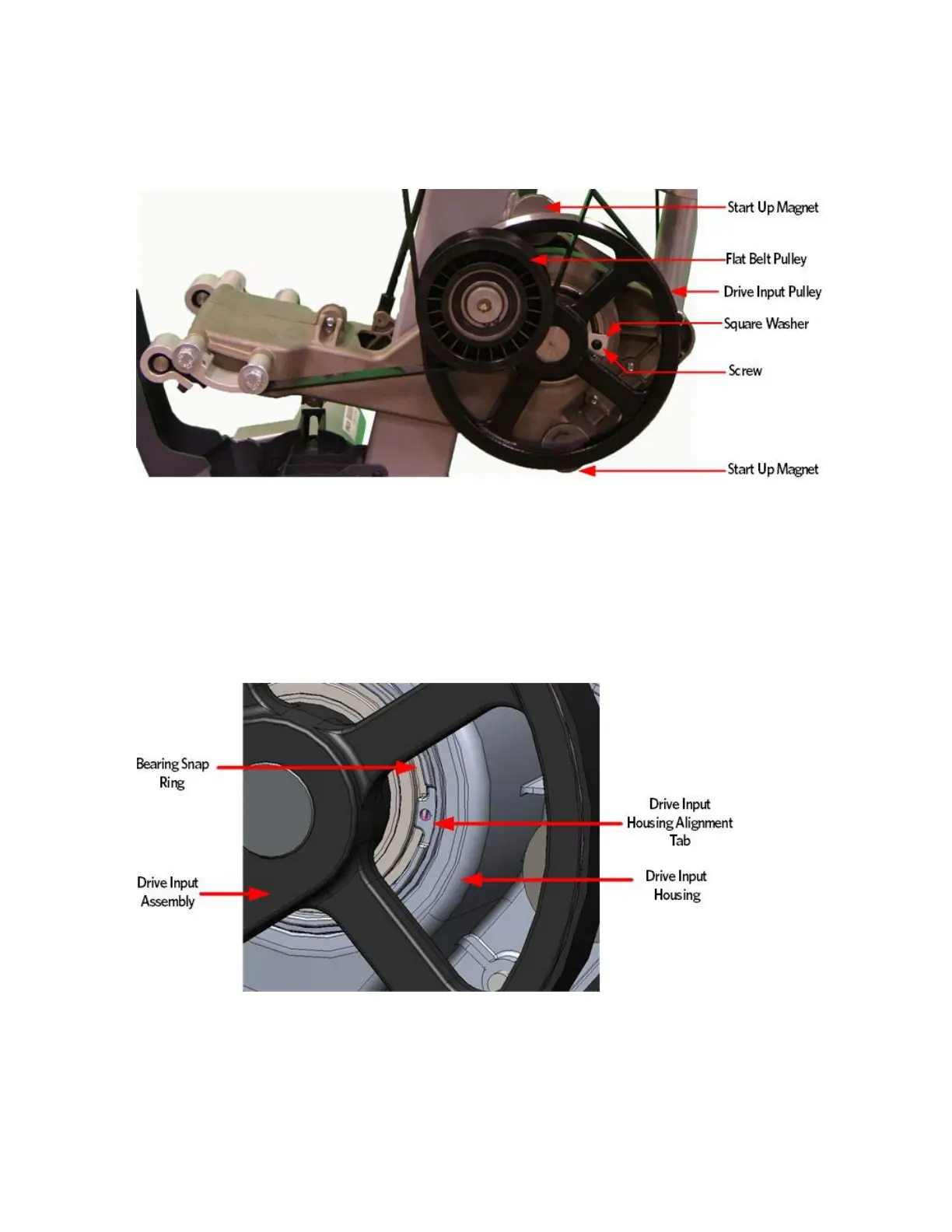

Figure 240: Drive Input Assembly
12 Install the replacement drive input assembly by aligning the bearing
snap ring opening with tab of the drive input housing.
13 Fasten the drive input assembly to the drive input housing using the
screw and square washer. Make sure that the square washer does not
contact the drive input pulley after installation, test by spinning
the drive input pulley through its full range.
Figure 241: Drive Input Assembly Alignment
14 Replace the drive input belt over the drive input pulley and the
step up pulley.
