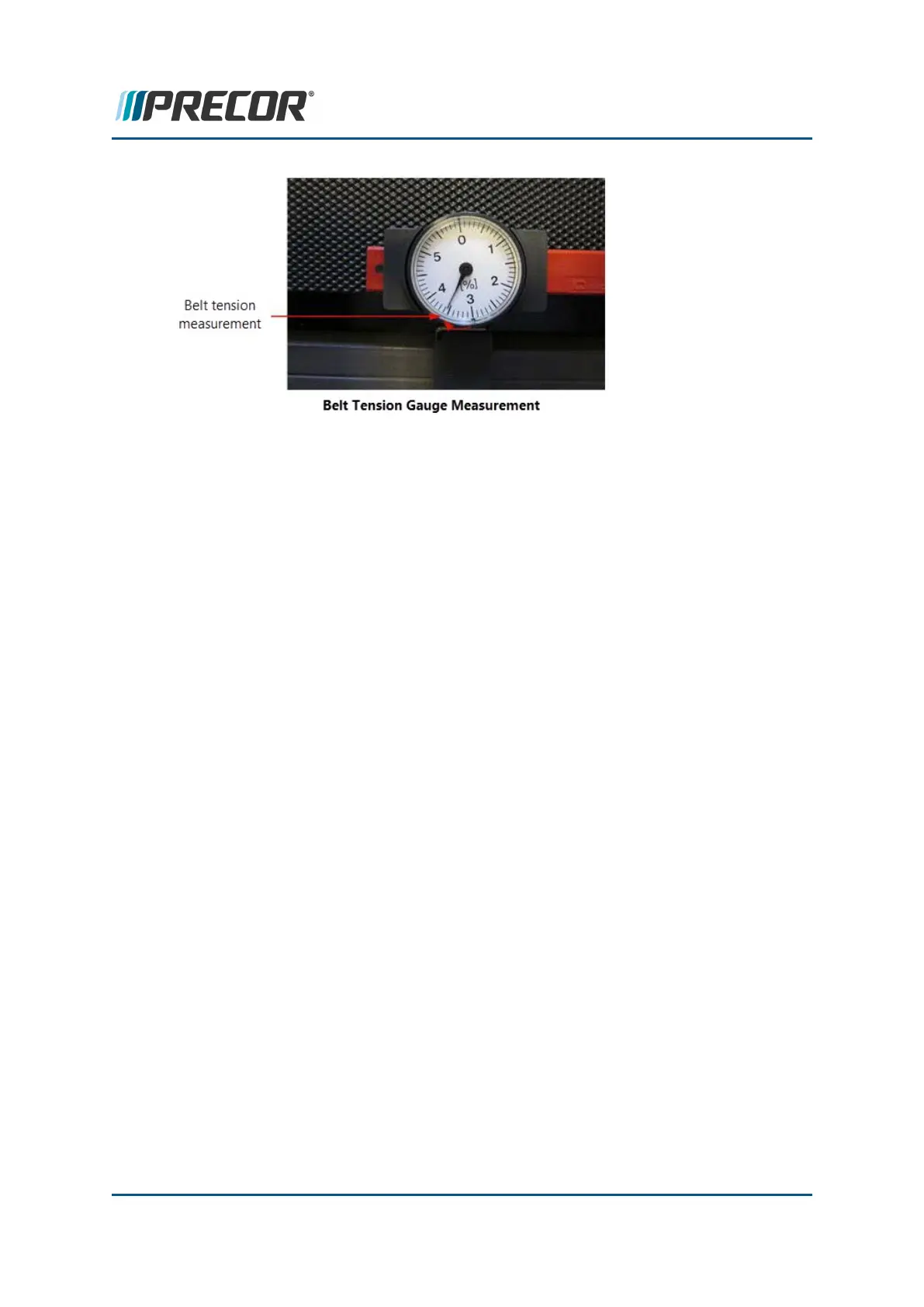

11. Remove the tension gauges.
Running belt tracking adjustment
Review entire procedure before starting.
1. Connect the power cord and switch the power ON.
2. Start the treadmill and set the speed to 3 mph (5 kph).
3. Observe and verify that the running belt tracking remains centered, if the belt does not
remain centered, follow the following instruction to make adjustments:
a. If the belt starts to drift toward the right, slowly turn the right side tension adjust-
ment bolt clockwise in ¼ turn increments until the drifting stops.
b. If the belt starts to drift toward the left, slowly turn the right side tension adjust-
ment bolt counterclockwise in ¼ turn increments until the drifting stops.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 59
5 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
