Prestigio Visconte - External Locator - Front, Left & Right Side Views

1.Introduction

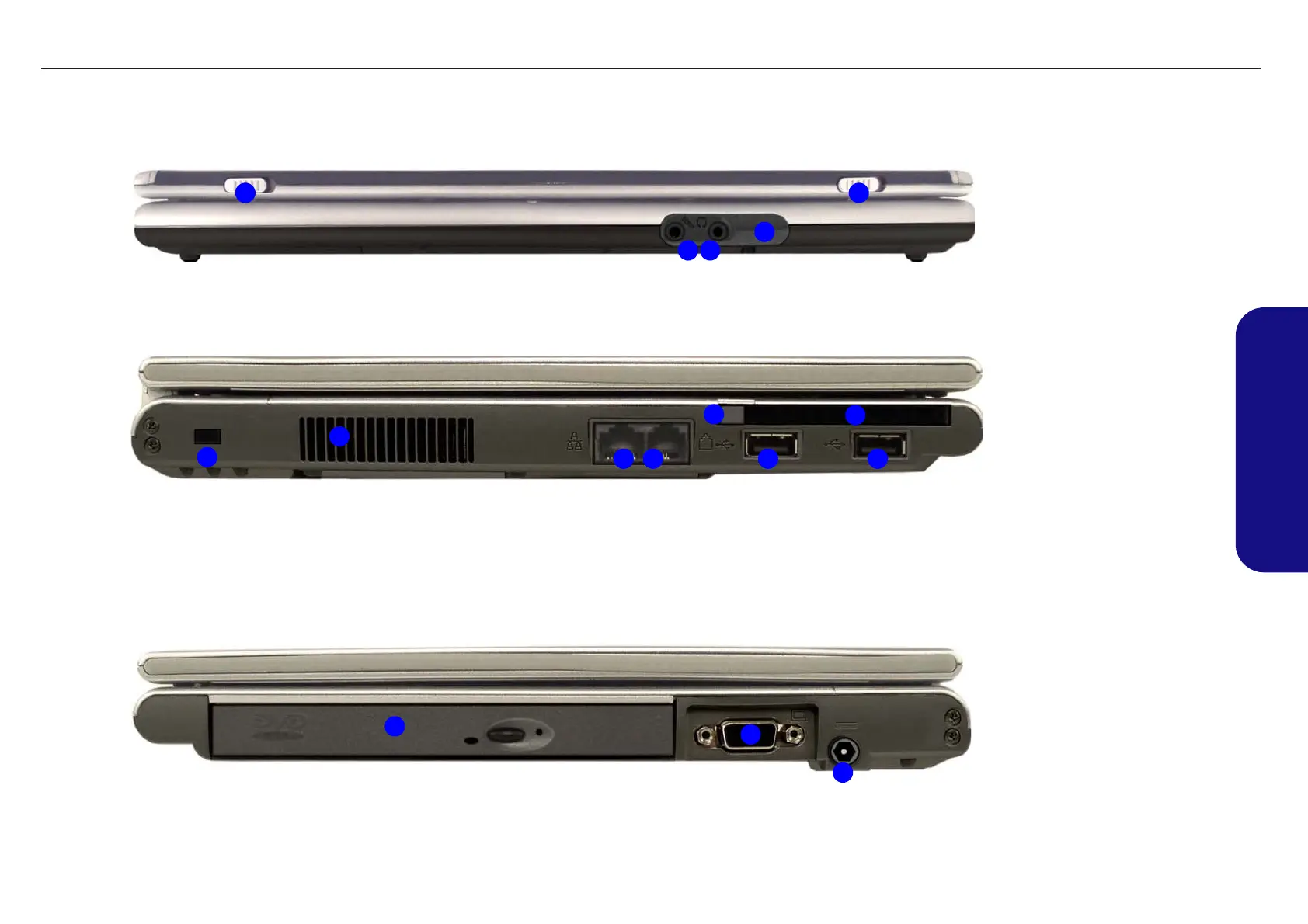

External Locator - Front, Left & Right Side Views
Figure 1 - 3
Front View
1. LCD Latches
2. Microphone-In Jack
3. Headphone-Out
Jack
4. Infrared
Transceiver
1
3
1
2
4
Front View
3 4
1
5
2
7
6
5
Left Side View
Figure 1 - 4
Left Side View
1. Security Lock Slot
2. Vent
3. RJ-45 LAN Jack
4. RJ-11 Phone Jack
5. USB 2.0/1.1 Ports
6. PC Card Slot
7. PC Card Slot Eject
Button
2
1
3
Right Side View
Figure 1 - 5
Right Side View
1. Optical Device Bay
2. External Monitor
(VGA) Port
3. DC-In Jack
TECHNICAL SERVICE MANUALPrestigio Visconte 125W
