Prestigio Visconte - Mainboard Overview - Top (Key Parts)

1.Introduction
Mainboard Overview - Top (Key Parts)

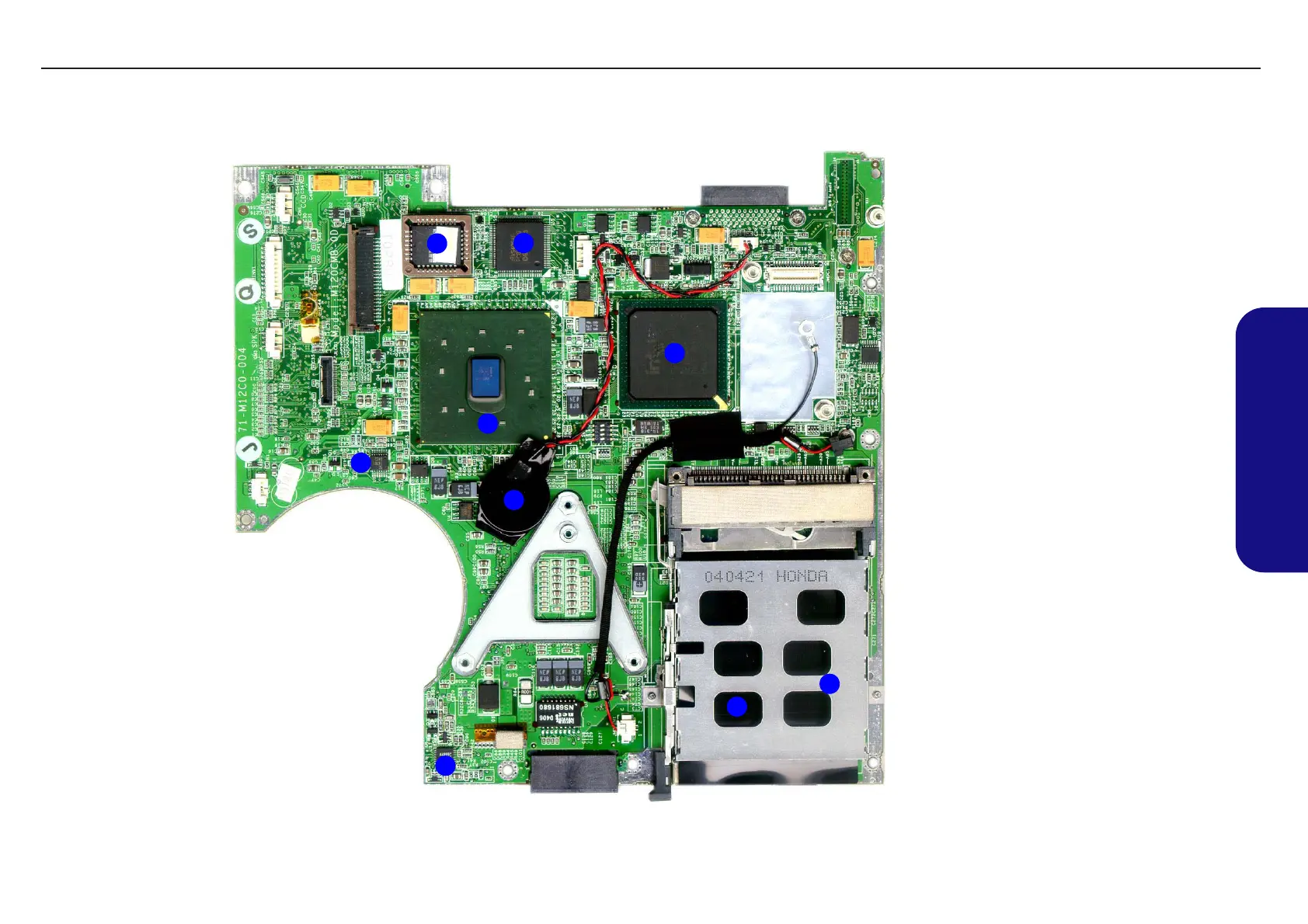

Figure 1 - 7
Mainboard Top
Key Parts
1. Flash ROM BIOS
2. Super I/O
3. Intel 82801DBM
421 BGA
(ICH4-M)
4. Intel 855GME
732 Micro-
FCBGA
5. RTC Battery
6. CPU VCORE
7. VCCP
8. Cardbus
ENE1410 (under
PCMCIA)
9. LAN RTL8100BL
(under PCMCIA)
1
2
3
4
5
6
7
8
9
TECHNICAL SERVICE MANUALPrestigio Visconte 125W
9
