Removing the Touchpad
1. Turn off the computer and remove the battery (page 2 - 7), HDD (page 2 - 8), RAM (page 2 - 10), optical device
(page 2 - 11), WLAN module (page 2 - 12), processor (page 2 - 13), keyboard & shielding plate (page 2 - 15), sep-
arate the top & bottom cases (page 2 - 17), and disconnect any Bluetooth antenna cable (page 2 - 19).
2. Remove screws
- from the touchpad assembly, and disconnect cable .
3. Separate the clickboard & bracket and touchpad .
1
7 8
9

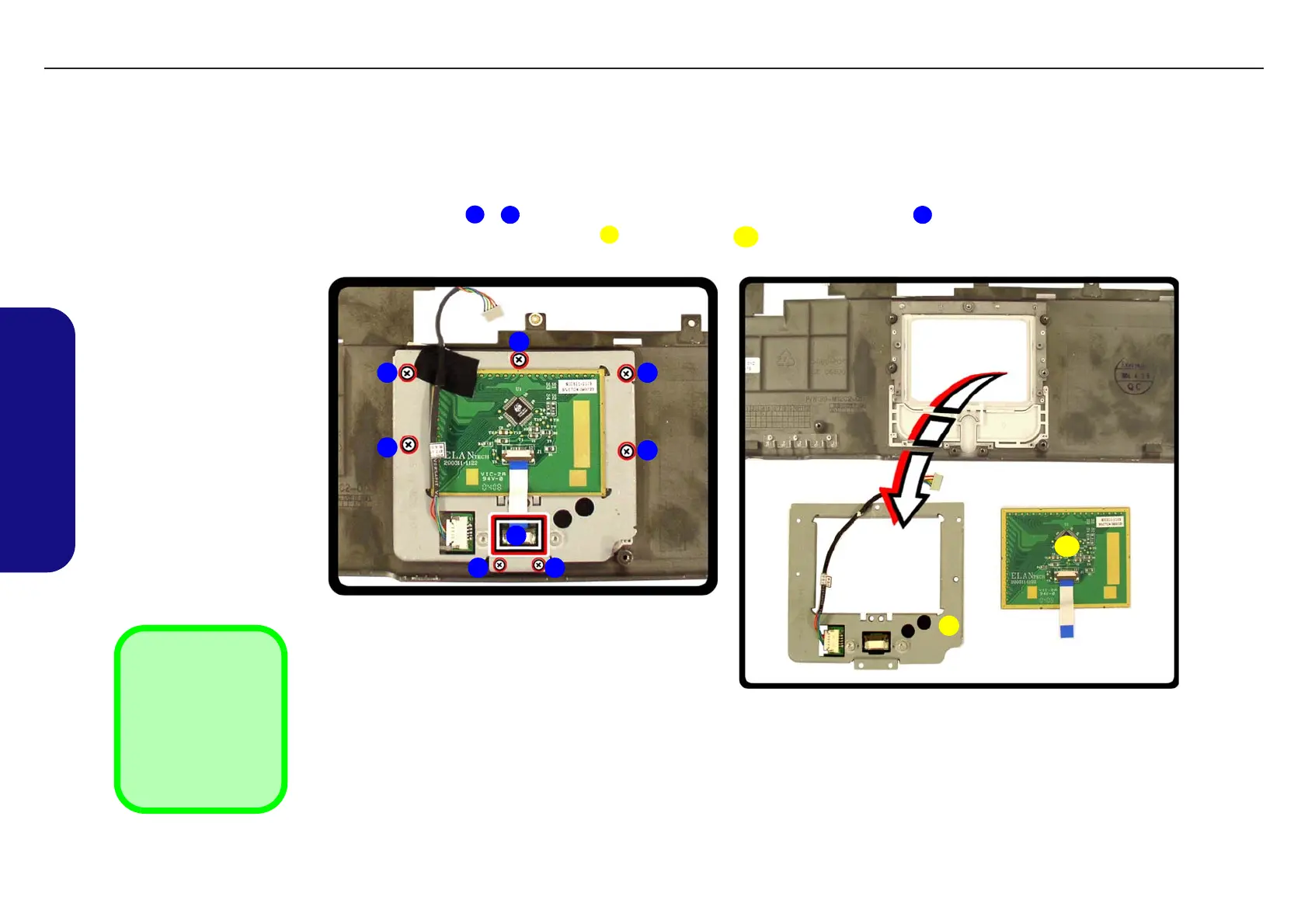

Figure 2 - 14
Removing the
Touchpad
a. Remove the 7 screws,
and disconnect the ca-
ble.
b. Remove the touchpad
and clickboard & brack-
et.

9. Clickboard &
bracket
10. Touchpad
•7 Screws
1
2
a. b.
8
9
3
7
6
5 4
10
10
