Prestigio Visconte - Audio Board Overview (Parts & Connectors)

1.Introduction

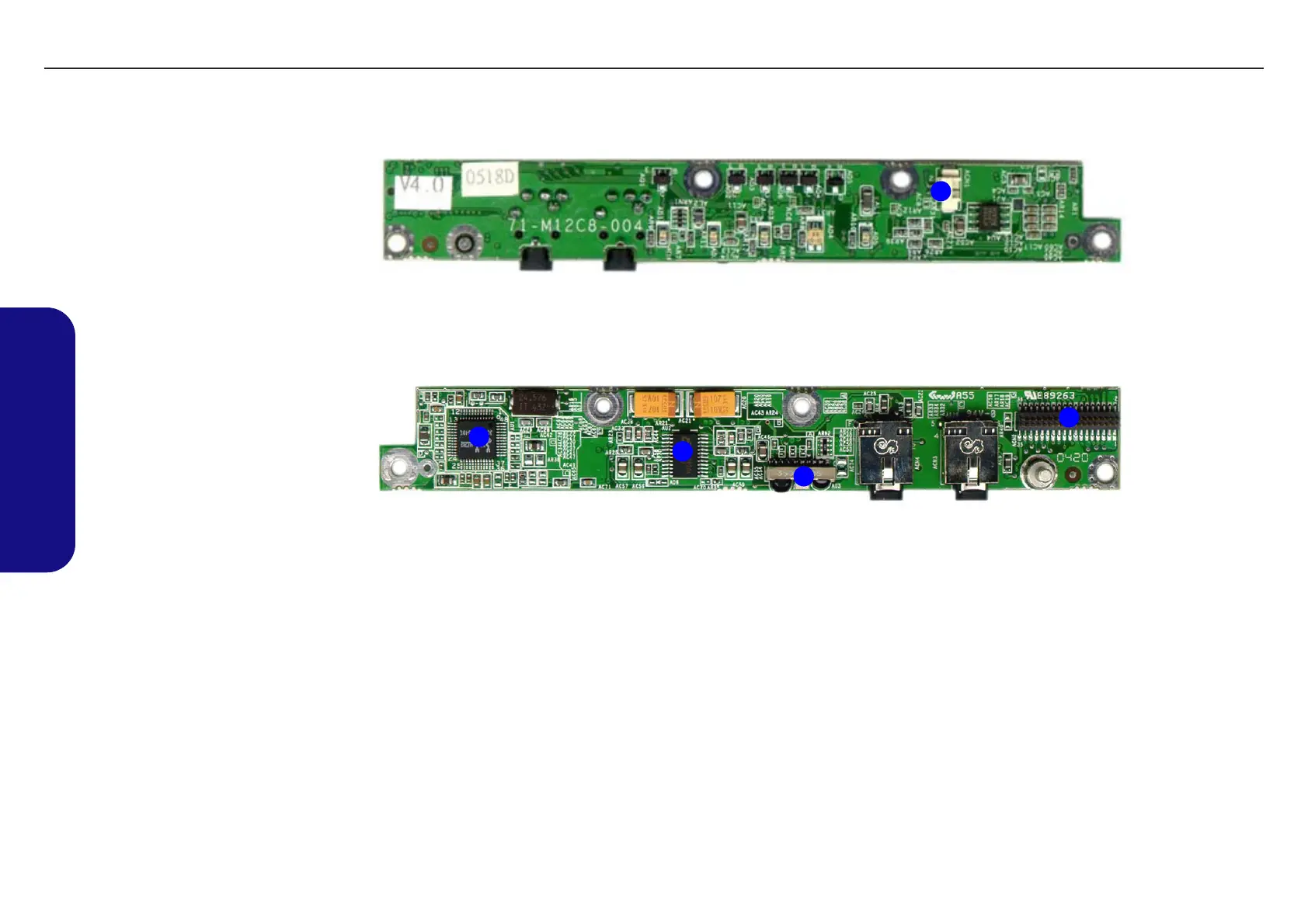

Audio Board Overview (Parts & Connectors)
Figure 1 - 12
Audio Board
Parts & Connectors
1. Microphone (ACN1)
2. Audio Codec
ALC202
3. AMP APA2020A
4. Mainboard
Connector (ACN2)
5. FIR HSDL 3602
(AU3)
2
3
1
Top
Bottom
4
5
TECHNICAL SERVICE MANUAL Prestigio Visconte 125W
14
