2.Disassembly
Removing the PCMCIA Module
1. Turn off the computer and remove the battery (page 2 - 7), HDD (page 2 - 8), RAM (page 2 - 10), optical device
(page 2 - 11), WLAN module (page 2 - 12), processor (page 2 - 13), keyboard & shielding plate (page 2 - 15), sep-
arate the top & bottom cases (page 2 - 17), disconnect any Bluetooth antenna cable (page 2 - 19), remove the
LCD front panel module (page 2 - 21) and mainboard (page 2 - 25).
2. Remove screws & from the back of the PCMCIA module (on the back of the mainboard).
3. Carefully push the pins & on the PCMCIA module as indicated.
4. Remove the PCMCIA module from the mainboard.
1 2
3 4
5

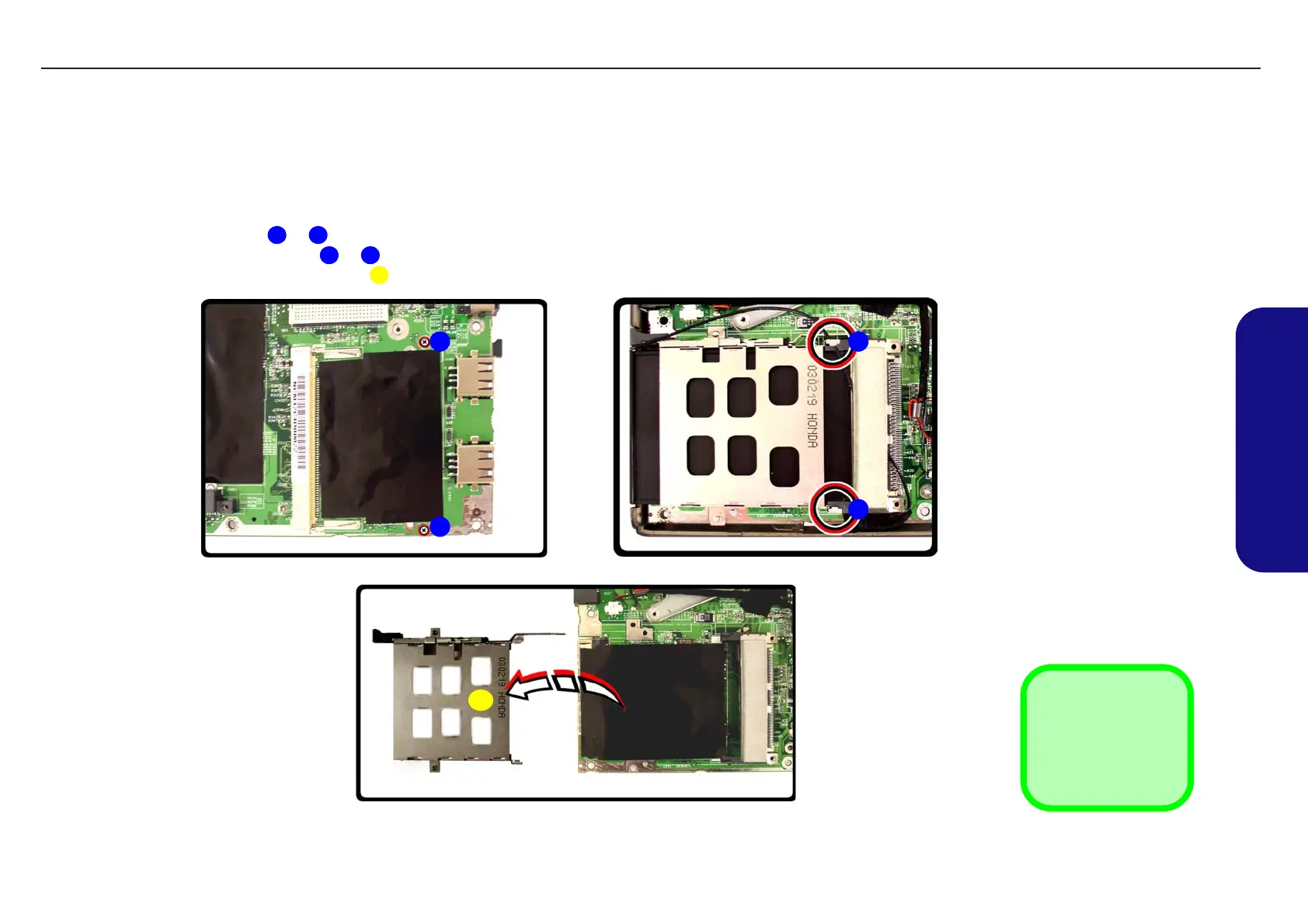

Figure 2 - 21
Removing the
PCMCIA Module
a. Remove the screws from
the rear of the main-
board.
b. Push the pins to release
the PCMCIA module.
c. Lift the module off the
mainboard.
5. PCMCIA Module
•2 Screws
1
2
4
3
5
a. b.
c.
