Prestigio Visconte - Mainboard Overview - Top (Connectors)

1.Introduction

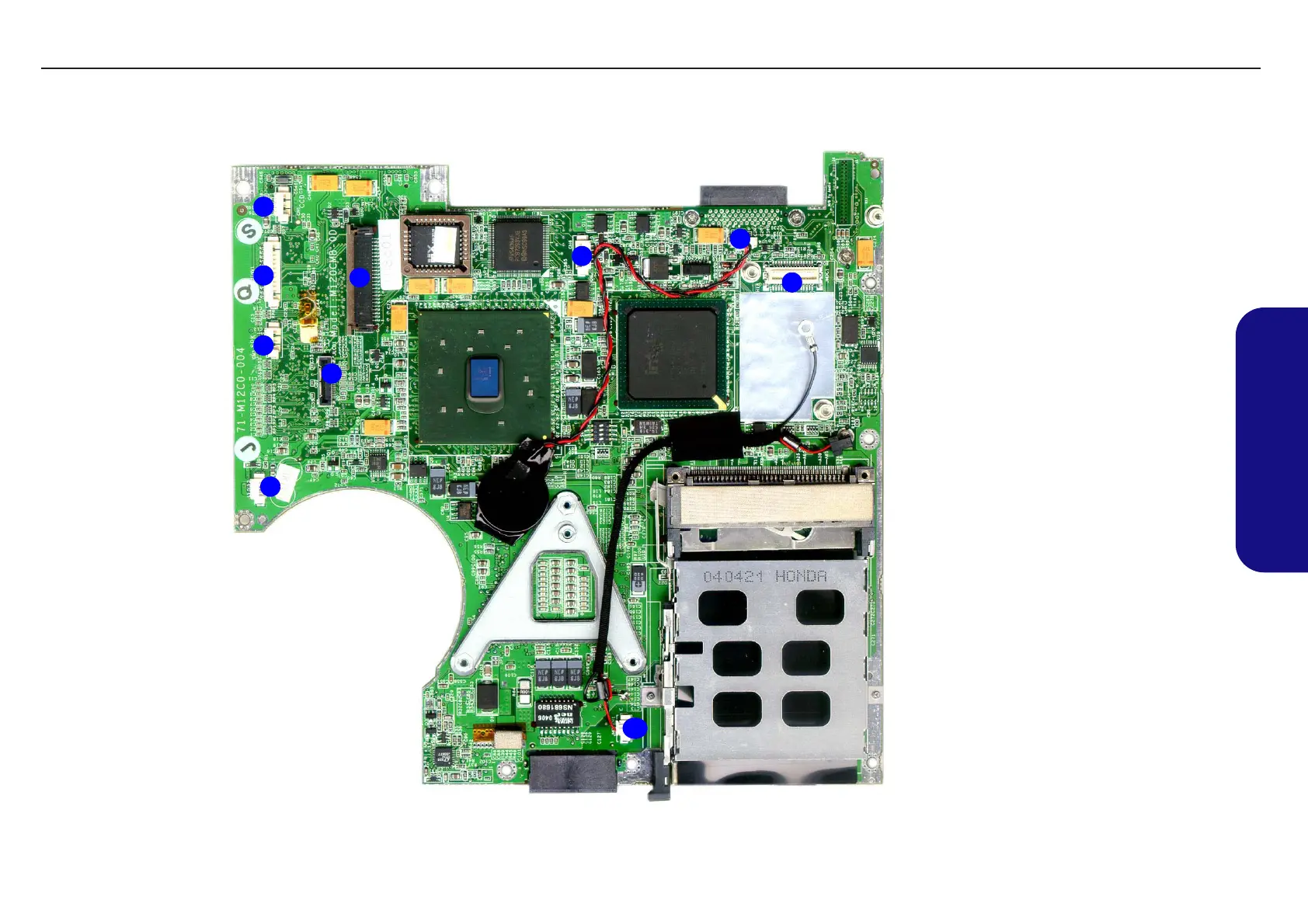

Mainboard Overview - Top (Connectors)
Figure 1 - 9
Mainboard Top
Connectors
1. (JMDC1) Modem
2. (JLCD1) LCD
3. (CN1) Camera
4. (JINV1) Inverter
5. (SPK) Speaker
6. (CN3) Keyboard
7. (CN2) Fan
8. Touchpad(CN6)
9. RTC Battery
10.Bluetooth Modem
(JMODEM1)
5
7
8
4
6
1
2
3
9
10
TECHNICAL SERVICE MANUALPrestigio Visconte 125W
11
