Removing the Mainboard
1. Turn off the computer and remove the battery (page 2 - 7), HDD (page 2 - 8), RAM (page 2 - 10), optical device
(page 2 - 11), WLAN module (page 2 - 12), processor (page 2 - 13), keyboard & shielding plate (page 2 - 15), sep-
arate the top & bottom cases (page 2 - 17), disconnect any Bluetooth antenna cable (page 2 - 19) and remove the
LCD front panel module (page 2 - 21).
2. Remove screws - and raise the board up carefully in order to separate the mainboard and bottom case
.
1
8
9
10

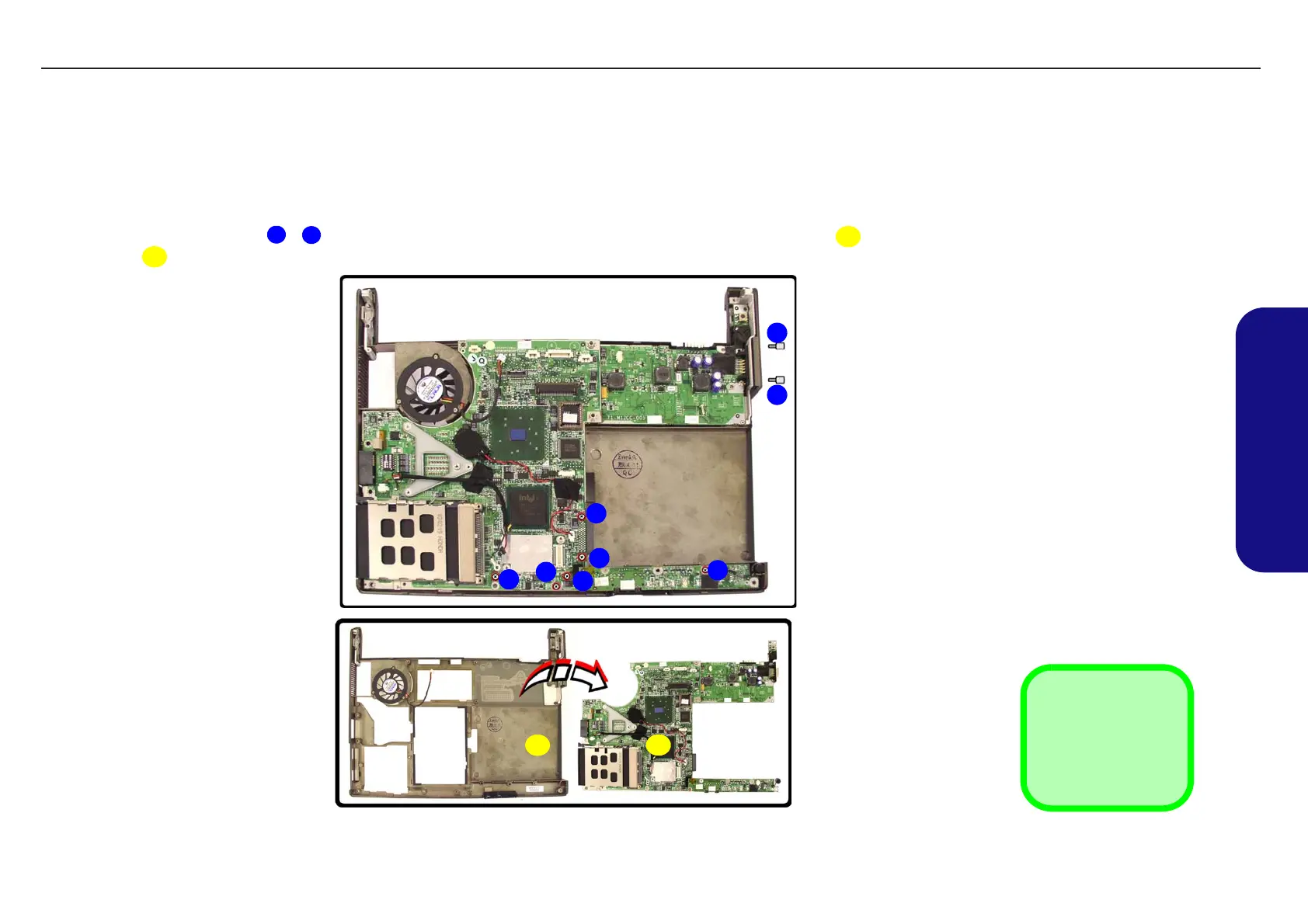

Figure 2 - 19
Removing the
Mainboard
a. Remove the screws.
b. Separate the mainboard
from the bottom case.

9. Mainboard
10. Bottom Case
•8 Screws
2
3
4
6
5
7
8
9
10
a.
b.
1
