2.Disassembly
4. Use a small screwdriver to release the CPU lock by giving it a counter-clockwise turn towards the open symbol.
5. Remove the CPU .
1

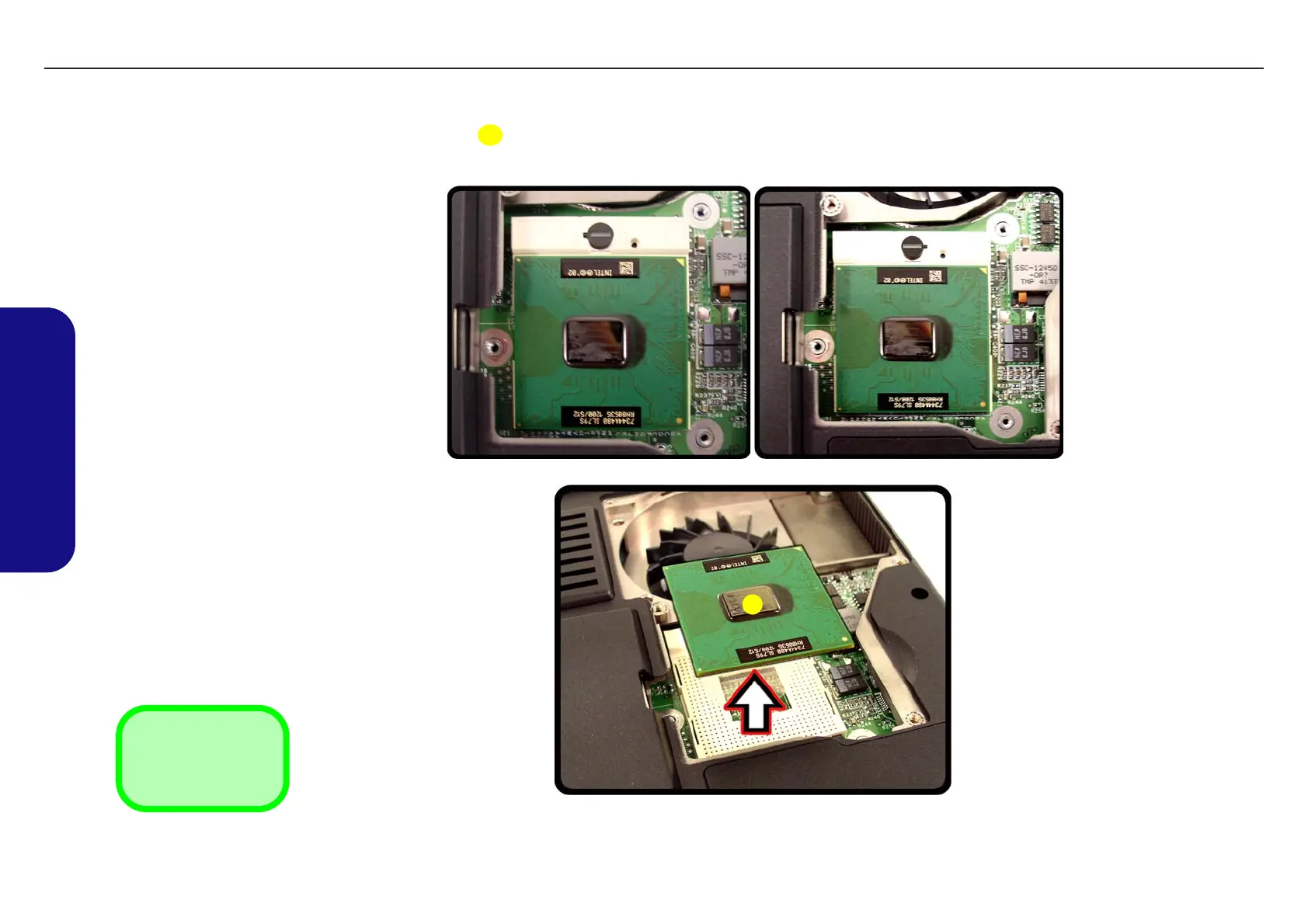

Figure 2 - 8
Processor Removal
(cont’d)
a. Unlock the CPU.
b. Remove the CPU.
a.
1
b.
CPU
CPU
Unlocked
Locked

1. CPU
TECHNICAL SERVICE MANUAL Prestigio Visconte 125W
